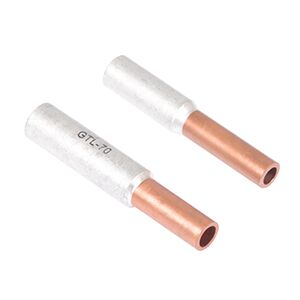

CABLE TUBE (GTL)
Description
Suitable for the connection of copper conductors in distribution equipment. These products are applicable connect the circular wire and hemicycle-sector wire in distribution equipment or power supply cables, GTL series connecting tube is made of friction-welding craft, both top quality.

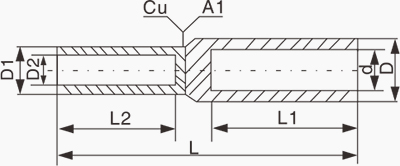

Model D(mm) d(mm) D1(mm) L1(mm) L2(mm) L(mm)
GTL-16 10 6 9 30 30 70
GTL-25 12 7 10 33 30 75
GTL-35 14 8.5 11 40 30 85
GTL-50 16 9.8 13 42 32 95
GTL-70 18 11.5 15 50 38 105
GTL-95 21 13.5 17 50 40 110
GTL-120 23 15 19 55 42 112
GTL-150 25 17 21 55 44 118
GTL-185 27 18.5 23 60 46 125
GTL-240 30 21 26 60 54 130
GTL-300 34 23 28 65 56 145
GTL-400 38 27 30 70 60 155
GTL-500 43 29 34 75 65 165
