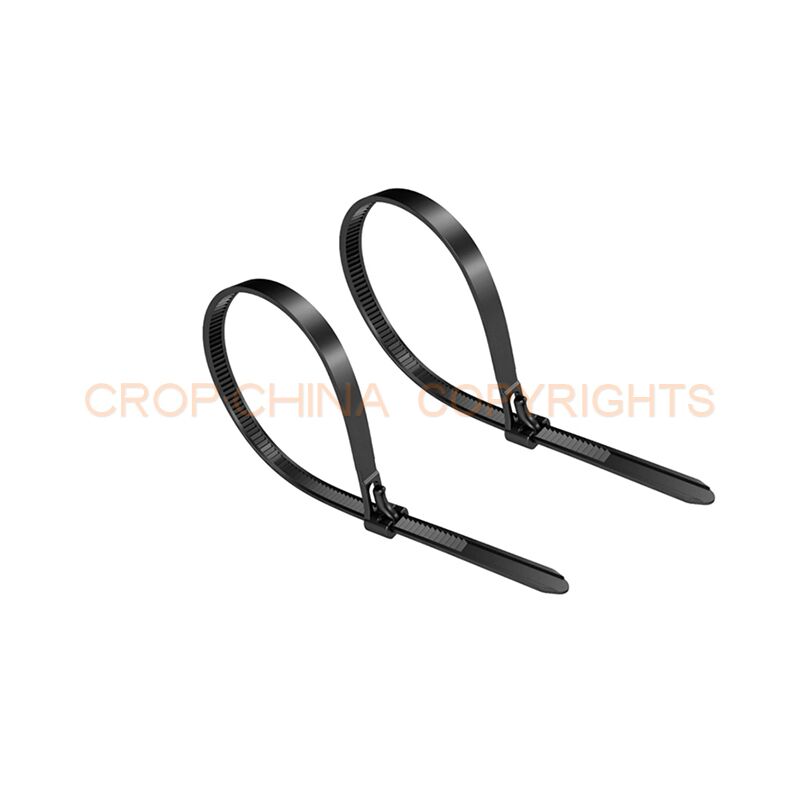

Description of nylon cable tie with releasable head

Nylon cable tie with releasable head (as known as a hose tie, zip tie) is used as fastener.For holding items like electrical cables,wires or other things in the electrical & electronic together.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.

The common cable tie, normally made of nylon.It has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet.so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet, so that the tie can be loosened or removed,and possibly reused.

Working temperature:Applied form -10℃ to 85℃。

Material:Nylon 66,94V-2 UL.

Cable tie HS code:3916901000

Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age, releasable and reuseable.

Usage:Releasable cable ties which are easily assembled by hand or with pliers.

Colour:White,Black,nature standard color or other colour according to customer request.

We can do OEM according to the samples or drawings.

Item No. Length W(mm) Bundle diameter
(mm)
Min Tensile strength
Inch L(mm) LBS KGS
CT-150RT 6″ 150 7.2 35 50 22
CT-200RT 8″ 200 50 50 22
CT-250RT 10″ 250 65 50 22
CT-300RT 12″ 300 80 50 22
CT-400RT 16″ 400 100 50 22
Item No. Length
(mm)
W(mm) Bundle diameter
(mm)
Min Tensile strength
LBS KGS
CT-100 100 3.6 22 40 18
CT-150 150 4.7 35 50 22
CT-200 200 4.7 50 50 22
CT-250 250 4.8 65 50 22
CT-300 300 4.7 65 50 22
