Description

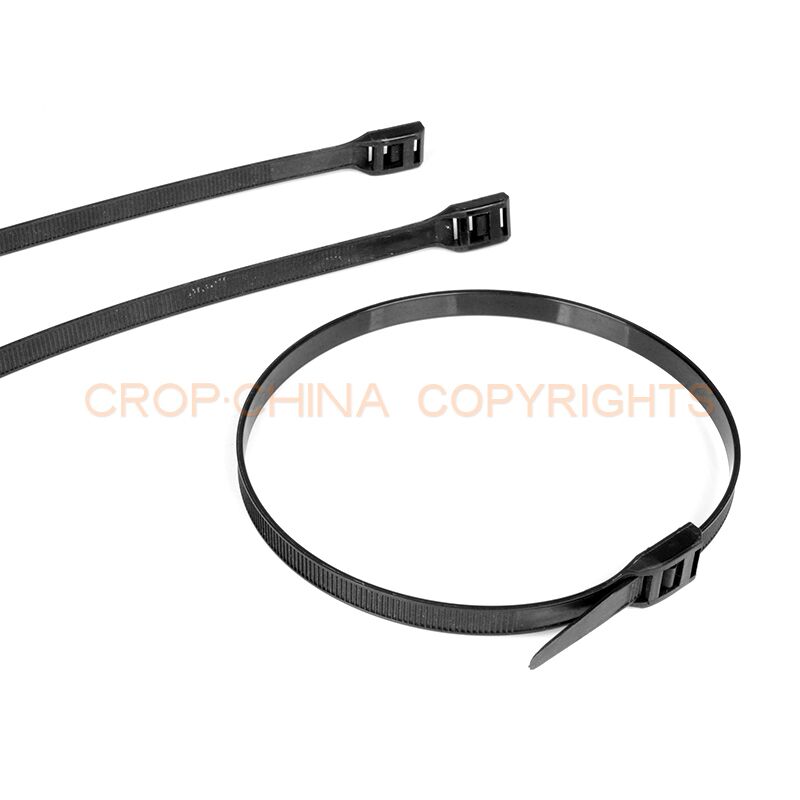

Description of tie wraps with double locking
Tie wraps with double locking(as known as a hose tie, zip tie) is used as fastener,for holding items like cables, wires, conducts, plants or other things in the industry of electrical & electronic,lighting,hardware,pharmaceutical,chemical,computer,machinery,agriculture together,primarily electrical cables or wires.Cause the low cost and ease of use,cable zip ties are use in a wide range of other applications.
The common cable tie, normally made of nylon, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed,and possibly reused.
Working temperature:Applied form -10℃ to 85℃。
Material:Nylon 66,94V-2 UL.
Cable tie HS code:3916901000
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.
Usage:double locking,have the strong supporting capacity.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
Item No. | Length | W(mm) | Bundle diameter E(mm) |
Min Tensile strength | ||
---|---|---|---|---|---|---|
Inch | L(mm) | LBS | KGS | |||
CT-114DT | 4.5″ | 114 | 6 | 8-28 | 50 | 22 |
CT-175DT | 6.8″ | 175 | 6 | 8-40 | 50 | 22 |
CT-180DT | 7″ | 180 | 9 | 15-45 | 67 | 30 |
CT-260DT | 10 1/4″ | 260 | 9 | 30-66 | 67 | 30 |
CT-350DT | 13 5/8″ | 350 | 9 | 30-90 | 67 | 30 |
