Suspension clamps for self supporting LV-ABC lines

Send Inquiry
Description

Description

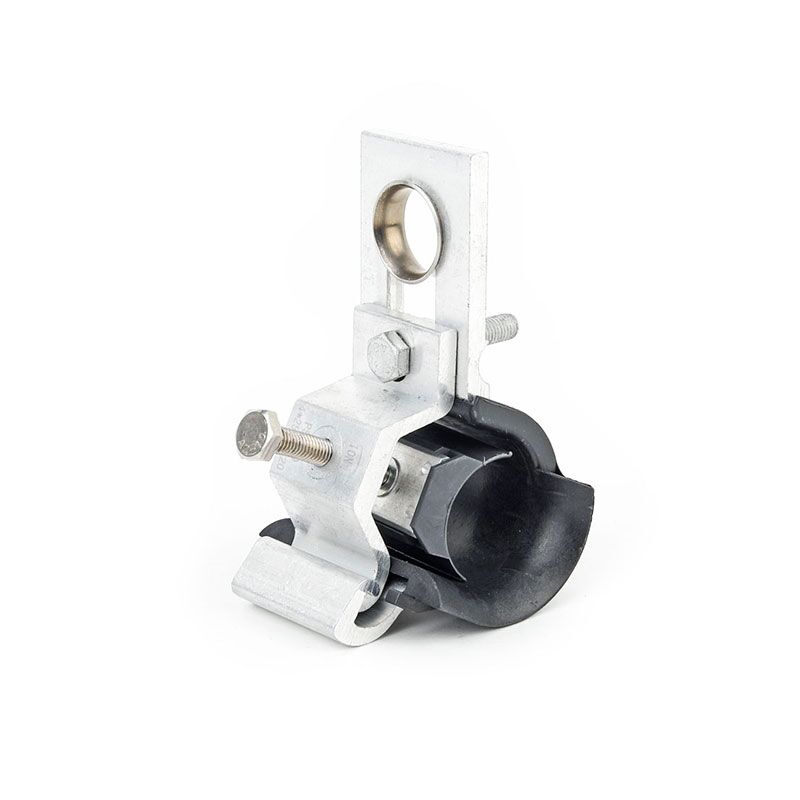

Self supporting Suspension clamp

Description

Self supporting suspension clamp is designed for the installation and suspension of four core self-supporting LV-ABC cables to poles or walls. The clamp can be easily installed without damage to the cable insulation. No loose parts.
Standard: EN 50483-2, VDE0211

The suspension clamp J hook consist with J hook,screw and sleeve.

Material of suspension clamp

J hook made of galvanized steel

The sleeve made of neoprene

The screw made of protected steel

Feature of suspension clamp with J hook

1.The shape of the J hook suspension clamp allows a running out of  the cable directly in the hook.

2.The suspension clamps can be directly secured to the poles using bolts or bandings.

3.Hook clamps also can be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

SU130 2-4x (25-50)≤60°/2-4x (25-120)≤30° 10NM

Equal model: PSP120

Installation of suspension clamp

Installation method 1:

J hook suspension clamp suspended with a hook bolt

The suspension clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

Installation method 2:

J hook suspension clamp suspended with a bolt

The suspenson clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
