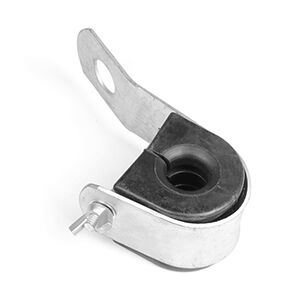

SUSPENSION CLAMP FOR ABC CABLE
Self supporting Suspension clamps
Description
Suspension clamp is designed for the installation and suspension of four core self-supporting LV-ABC cables to poles or walls. The clamp can be easily installed without damage to the cable insulation. No loose parts.
Standard: EN 50483-2, VDE0211
Material
The clamp is made of hot-dip galvanized steel and weather resistant material Equipped with shear head bolt.
| Models | SU-Mini10.35 | SU-Mini50.95 | SU-Max95.120 | SU-Max120.150 |
| Cable range (mm²) | 4×10-35 | 4×50-95 | 4×95-120 | 4×120-150 |
| MBL(daN) | 1000 | 1000 | 1500 | 1500 |
*Installing on pole together with M16 size hook bolt or bracket
