Tubular Cable Lugs

Tubular Cable Lugs are connector fittings typically used to terminate stranded wire. They provide a weatherproof and mechanically strong connection between two or more wires, and are often used to create or extend electrical circuits.

Material: Aluminum and copper.

Conductor range: 10-500 mm2

Send Inquiry
Description

Description

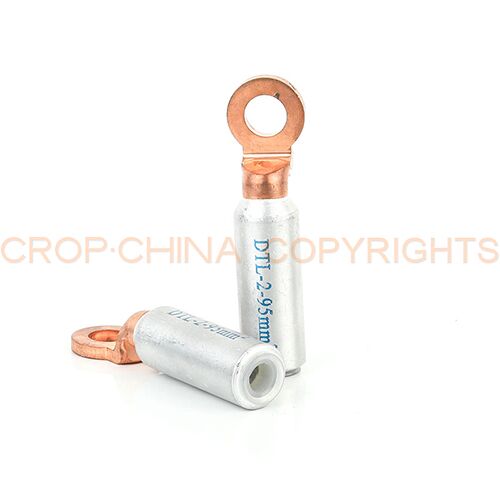

Tubular Cable Lugs

Tubular Cable Lugs are connector fittings typically used to terminate stranded wire. They provide a weatherproof and mechanically strong connection between two or more wires, and are often used to create or extend electrical circuits. Tubular Cable Lugs come in a variety of sizes, shapes, and finishes, to accommodate a wide range of wire gauges and applications.

Types of Tubular Cable Lugs

Bimetallic cable lugs

Tubular Cable Lugs

Model φ D(mm) d(mm) L(mm) L1(mm)
DTL-2-10 φ13 16 5.5 87 42
DTL-2-16 φ13 16 6.5 87 42
DTL-2-25 φ13 16 8 87 42
DTL-2-35 φ13 16 9 87 42
DTL-2-50 φ13 20 11 87 43
DTL-2-70 φ13 20 12.5 87 43
DTL-2-95 φ13 20 13.5 87 43
DTL-2-120 φ13 25 15.5 111 60
DTL-2-150 φ13 25 17.5 111 60
DTL-2-185 φ13 32 19.5 116 60
DTL-2-240 φ13 32 22.5 116 60
DTL-2-300 φ13 34 23.5 120 62

Bimetallic Lugs Square Head

cable lug

Item No. Dimension(mm)
D d d1 L L1 S W
DTL2-S-10 16 4.5 8.5 87 42 4.2 14
DTL2-S-16 16 5.5 8.5 87 42 4.2 14
DTL2-S-25 16 7 8.5 87 42 4.2 14
DTL2-S-35 16 8.5 8.5 87 42 4.2 14
DTL2-S-50 20 9.5 10.5 100 50 5.2 17
DTL2-S-70 20 11.5 10.5 100 50 5.2 17
DTL2-S-95 20 13 10.5 100 50 5.2 17
DTL2-S-120 25 15 13 120 60 6.2 21
DTL2-S-150 25 16.5 13 120 60 6.2 21
DTL2-S-185 32 18 13 125 60 7.2 25
DTL2-S-240 32 19.5 13 125 60 7.2 25
DTL2-S-300 34 23.5 13 145 65 8 30
DTL2-S-400 40 26 13 150 70 8 32
DTL2-S-500 40 29 13 150 70 8 32

Copper lugs with Square Palm two hole

Bimetallic lug



Type Dimension
d D L1 L B
DTL-2-35 8.5 16 40 117 22
DTL-2-50 9.8 16 42 117 22
DTL-2-70 11.5 18 48 133 28
DTL-2-95 13.5 21 52 144 28
DTL-2-120 15 23 53 148 34
DTL-2-150 16.5 25 56 152 34
DTL-2-185 18.5 27 58 163 40
DTL-2-240 21 30 60 168 40
DTL-2-300 24 34 65 180 50
DTL-2-400 27 38 70 192 50

Related Product of Tubular Lugs

Tubular Cable Lugs

More cable lugs types,please click here.

How to select the suitable Tubular Cable Lugs?

When selecting the appropriate Tubular Cable Lugs for a project, it is important to consider the following factors:

-Type of Wire: Cable lugs are available in a variety of sizes to accommodate a range of wire gauges. Always use a lug that is compatible with the gauge of wire being terminated.

-Connection Style: There are two main types of cable lug connections: crimp and solder. Crimp connections are made by compressing the wire against the lug with a special tool, while solder connections involve heating the wire and lug with a soldering iron and applying solder to the joint.
