Butt splice BV type

Send Inquiry
Category: Tag:
Description

Description

Description of heat shrink butt connectors

Heat shrink butt connectors are also named wire crimp terminals and butt splice.They are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Crimp wire connectors especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices.No breakage of wire strands when wire is bent,under stress or in a vibration environment. Butt splice designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.Butt splice disconnect is a kind of accessory for electrical connections,which can be crimped on cable/wire/ electrical equipment. A wide range of premium quality lugs we can supply,and satisfy your different demands.

Material of crimp wire connectors

Tin plated copper,PVC

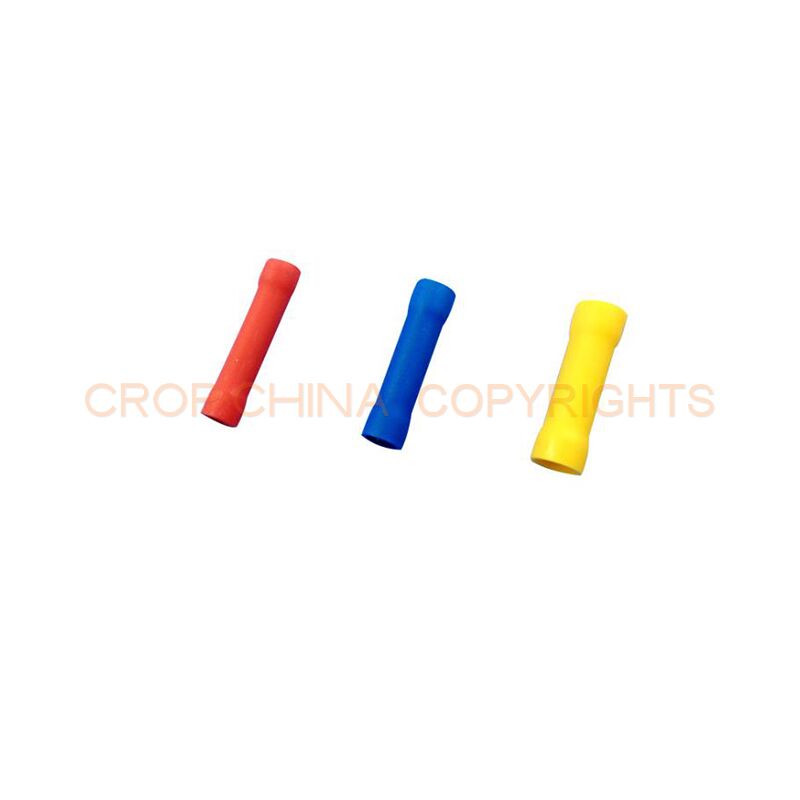

Product picture of butt splice

Heat shrink butt connectors,electrical crimp wire connectors,marine automotive wire crimp terminals,butt splice
Heat shrink butt connectors,electrical crimp wire connectors,marine automotive wire crimp terminals,butt splice
Item No. Conductor Section Dimension(mm) Max.Current Colour
A.W.G. mm2 I d L
BV 1.25 22-16 0.5-1.5 15 1.7 26 19A Red
BV 2 16-14 1.5-2.5 15 2.3 26 27A Blue
BV 5.5 12-10 4-6 15 3.4 26 48A Yellow
BV 8 #8 6-10 21 4.5 32 62A Red
BV 14 #6 10-16 26 5.8 42 88A Blue
BV 22 #4 16-25 29 7.7 50 115A Yellow
BV 38 #2 35-50 32 9.4 55 160A Red
PVT 1.25 22-16 0.5-1.5 8 1.7 16 19A Red
PVT 2 16-14 1.5-2.5 8 2.3 16 27A Blue
PVT 5 12-10 4-6 8 3.4 20.5 48A Yellow

Related Product

Butt splice

Features of wire crimp terminals

1.Smooth funnel entry to make wire insertion easier
2.Secure contacting even after multiple reconnections
3.Long-term contact resistance
4.No fraying of strands
5.No breakage of wire strands when wire is bent,under stress or in vibration environment
