Copper Flexible Braided Connector

Copper flexible braided connector is made of weaving together strands of copper wire,and the the two ends are furnish with the cable terminal.

For other Copper flexible braided connector we can do the customized product according to your drawings or samples.

Send Inquiry
Description

Description

Copper Flexible Braided Connector

Copper flexible braided connector is made of weaving together strands of copper wire,and the the two ends are furnish with the cable terminal.The cable terminal usually has the holes,so that it can be install with the screw to the electric equipment.It is has a wide usage range,such as switchgear industries, transformers, welding and galvanic engineering, Manufacturing of modular, membrane and diaphragm cells, cathode protection, etc.

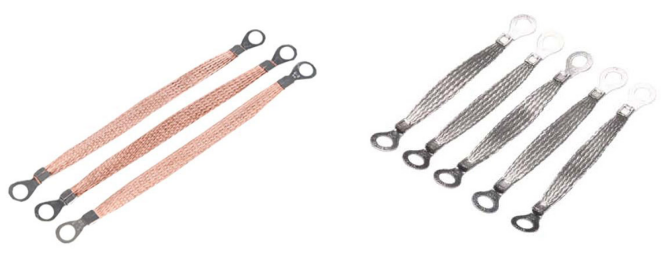

Copper braided connector with OT terminal lug

Copper braided connector with OT terminal lug

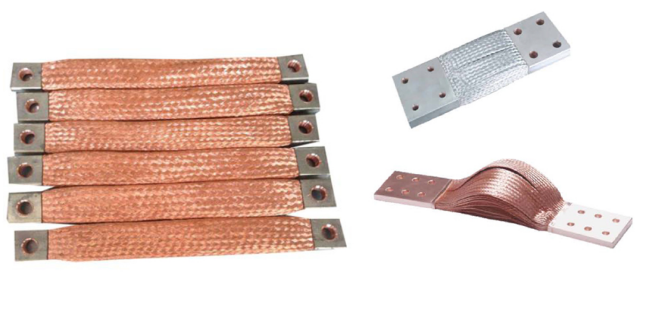

Flat copper braided busbar shunt connector

Flat copper braided busbar shunt connector

Cross-section
(mm²)
Dimension
(mm)

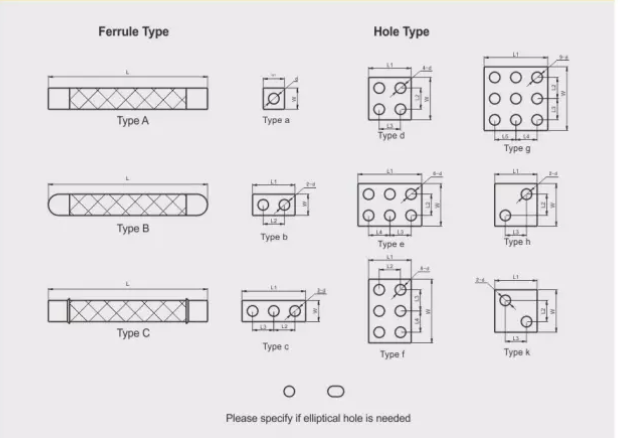

Ferrule Type Hole Type
Hole dimension L
4 According to customer requirement According to customer requirement A/B/C for your choose a/b/c/d/e/f/g/h/k for your choose
6
8
10
14
16
25
35
50
70

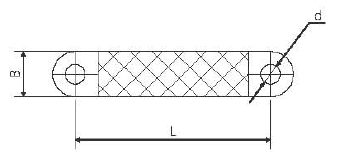

Earth grounding straps copper braided with solderless pressed contact areas

Cross-section
(mm²)
Dimension
(mm)
B d L
4 8 According to customer requirement According to customer requirement
6 10
8 12
10 14
14 18
16 20
25 22
35 25
50 33
70 35

We can do the customized product according to your drawings or samples.

Braids made of manycopper wires are also sometimes used for flexible electrical connections between large components. The numerous smaller wires comprising the braid are much more resistant to breaking under repeated motion and vibration than is a cable of larger wires. In electrical and electronic cables, braid is a tubular sheath made of braided strands of metal placed around a central cable for shielding against electromagnetic interference.
