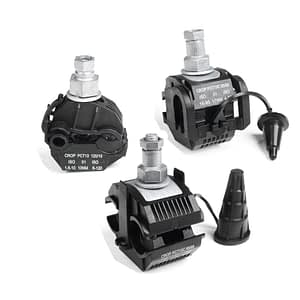

Piercing Branch Clamp

The piercing branch clamp is suitable for used on low voltage aluminum and cooper conductor ariel bundle cable.

The IPC connector is insulated and suitable for use in liveline work.

It is of insulation piercing type of main and tee-off conductors.

Send Inquiry
Description

Description

Piercing Branch Clamp

The piercing branch clamp is suitable for used on low voltage aluminum and cooper conductor ariel bundle cable.The IPC connector is insulated and suitable for use in liveline work.It is of insulation piercing type of main and tee-off conductors.

Piercing branch clamp material

  • Upper and lower Body: made entirely of mechanical,weather,UV and age resistant plastic insulation material with no metallic parts outside the boday expect for the shearhead or nut of the tightening bolt.
  • Teeth of the contact plate: Copper tinned,copper alloy tinned or aluminum
  • Waterproof Sealing cover: Flexible PVC
  • Cable end cap: the tap section shall be provided with an end cap filled with oxide inhibiting compound of silicon grease and made from weather UV and age resistant plastic insulating material.The life span of the end shall be the same,if not longer than the life span of the connector itself.
  • Grease: Silica gel
  • Shear head nut: Zinc Alloy,the shearhead or nut of the lightning bolts is of size 13mm or 17mm.
  • Bolt and washer: Hot dip galvanized steel or Dacromet.It is made of  non-corrosive material which shall maintain the pressure of the connector on the cable throughout the service life of the connector.

IPC Connector Size

Insulation Piercing Connector

CROP Model Equal Model Conductor range Packing
Main
(Al/Cu,Cu/Cu,Al/Al)
Tap
(Al/Cu,Cu/Cu,Al/Al)
Quantity/Carton Gross Weight.KG. Carton dimension CM
mm2 AWG mm2 AWG
PCT13C 95/10 DCNL-1 10-95 7-4/0 1.5-10 16-7 400 24.2 46.5X37X20
PCT13C 95/50 DCNL-2 16-95 5-4/0 4-50 12-1/0 150 23.7 46.5X37X20
PCT13C 95/95 DCNL-3 16-95 5-4/0 16-95 5-4/0 100 19 46.5X37X20
PCT13C 150/50 DCNL-4 50-150 1/0-300 4-50 12-1/0 150 24.7 46.5X37X20
PCT13C 150/150 DCNL-5 16-150 5-300 16-150 5-300 100 20.8 60X31X21



Related Product of Piercing Clamp

Branch Piercing Clamp

IPC Connector Catalogue download

If you want to know the piercing branch clamp price,please feel free contact us.
