Branch Piercing Clamp

The branch piercing clamp also named insulation piercing connector.It is suitable for the combinations of conductors of aluminum and copper conductors,covered main and branch conductors.

one bolt

Send Inquiry
Description

Description

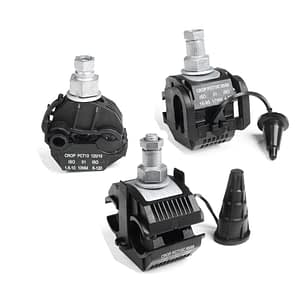

Branch Piercing Clamp for covered condcutors

The branch piercing clamp also named insulation piercing connector.It is suitable for the combinations of conductors of aluminum and copper conductors,covered main and branch conductors.It is able to pierce 2 mm insulation thickness for both main and branch conductors.

Insulation piercing connector material

  • Upper and lower Body: made of a mechanically strong, weather and UV resistant PA66 plastic.
  • Teeth of the contact plate: Copper tinned,copper alloy tinned or aluminum
  • Waterproof Sealing cover: Flexible PVC
  • Cable end cap: made from weather UV and age resistant plastic insulating material.
  • Grease: Silica gel
  • Shear head nut: Zinc Alloy
  • Bolt and washer: Hot dip galvanized steel or Dacromet.

Piercing Connector Size

Insulation Piercing Connector

CROP Model Equal Model Conductor range Packing
Main
(Al/Cu,Cu/Cu,Al/Al)
Tap
(Al/Cu,Cu/Cu,Al/Al)
Quantity/Carton Gross Weight.KG. Carton dimension CM
mm2 AWG mm2 AWG
PCT13C 95/10 DCNL-1 10-95 7-4/0 1.5-10 16-7 400 24.2 46.5X37X20
PCT13C 95/50 DCNL-2 16-95 5-4/0 4-50 12-1/0 150 23.7 46.5X37X20
PCT13C 95/95 DCNL-3 16-95 5-4/0 16-95 5-4/0 100 19 46.5X37X20
PCT13C 150/50 DCNL-4 50-150 1/0-300 4-50 12-1/0 150 24.7 46.5X37X20
PCT13C 150/150 DCNL-5 16-150 5-300 16-150 5-300 100 20.8 60X31X21

Feature of Branch Piercing Clamp

  • It is intended to be used on ‘live’ connection on to LV mains Cables.
  • Perfect connection is to be achieved without the need to remove the insulation of Conductors.
  • Connectors is suitable for installation on energized lines and without the tightening bolt coming into contact with live component.
  • Contact Plates have suitably rated contact teeth which will penetrate the insulation and secure the desired connection once the ‘voltage free’ bolt is tightened.
  • Both the Main and Branch Conductor insulations are pierced by single bolt action.
