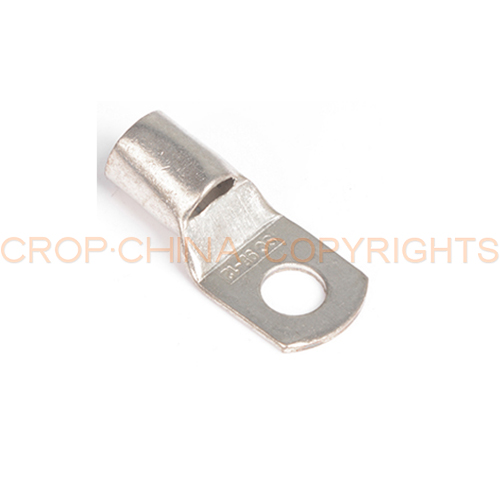

Cable Lug Type SC
Cable lug type SC is used to connect cables to electric equipment. There are many different types of lugs, but all of them have the same basic purpose.They provide a way to connect a cable to an electric device.
Cable lugs come in a variety of shapes and sizes. Some are designed for specific applications, while others are more general-purpose. Some lugs are designed to be used with specific types of cables, while others can be used with any type of cable.
Cable Lug Type SC Material
Cable lug type SC is made of copper.They are typically either plated or coated with the tinned of insulation to protect the metal from corrosion and to provide some protection against electrical shock.
Types of lugs
Cable Lugs JG Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JG-10 | Ø6.2 Ø8.5 | 8 | 5.4 | 38 |
| JG-16 | Ø6.2 Ø8.5 Ø10.5 | 9 | 6.5 | 41 |
| JG-25 | Ø6.2 Ø8.5 Ø10.5 | 10 | 7 | 46 |
| JG-35 | Ø6.2 Ø8.5 Ø10.5 Ø12.5 | 11 | 8 | 52 |
| JG-50 | Ø8.5 Ø10.5 Ø12.5 | 13 | 10 | 54 |
| JG-70 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 16 | 12 | 61 |
| JG-95 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 18 | 14 | 66 |
| JG-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 73 |
| JG-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 22 | 17 | 77 |
| JG-185 | Ø12.5 Ø14.5 Ø16.5 | 24 | 19 | 86 |
| JG-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 93 |
| JG-300 | Ø16.5 Ø18.5 | 30 | 24 | 103 |
| JG-400 | Ø16.5 Ø18.5 | 34 | 26 | 113 |
| JG-500 | Ø20.5 | 38 | 30 | 124 |
| JG-630 | Ø22.5 | 45 | 35 | 140 |
Battery Lugs JGK(SC) Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGK(SC)-1.5 | Ø4.2 Ø5.5 | 3.5 | 2.1 | 18 |
| JGK(SC)-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.6 | 19 |
| JGK(SC)-4 | Ø5.2 Ø6.2 | 4.8 | 3.4 | 21 |
| JGK(SC)-6 | Ø5.2 Ø6.2 Ø8.2 | 6 | 4.3 | 24 |
| JGK(SC)-10 | Ø6.2 Ø8.2 Ø10.5 | 6.8 | 5.2 | 25.5 |
| JGK(SC)-16 | Ø6.2 Ø8.2 Ø10.5 | 8 | 6.5 | 30.5 |
| JGK(SC)-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7.5 | 34 |
| JGK(SC)-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGK(SC)-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 10 | 45 |
| JGK(SC)-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 12 | 50 |
| JGK(SC)-95 | Ø8.2 Ø10.5 Ø12.5 | 17 | 14 | 55.5 |
| JGK(SC)-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 63 |
| JGK(SC)-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 21 | 17 | 71 |
| JGK(SC)-185 | Ø12.5 Ø14.5 Ø16.5 | 23 | 19 | 78 |
| JGK(SC)-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 92 |
| JGK(SC)-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGK(SC)-400 | Ø16.5 Ø20.5 | 34 | 27 | 113 |
| JGK(SC)-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGK(SC)-630 | Ø20.5 | 45 | 35 | 135 |
Compression Lugs AUS Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| AUS-6 | Ø5.2 Ø6.2 Ø8.2 | 5.5 | 3.8 | 31.5 |
| AUS-10 | Ø6.2 Ø8.2 | 6 | 4.5 | 34.5 |
| AUS-16 | Ø6.2 Ø8.2 Ø10.5 | 8.5 | 5.5 | 43.5 |
| AUS-25 | Ø6.2 Ø8.2 Ø10.5 | 10 | 7 | 48 |
| AUS-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 12.5 | 8.2 | 52 |
| AUS-50 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 10 | 64 |
| AUS-70 | Ø8.2 Ø10.5 Ø12.5 | 16.5 | 11.5 | 68 |
| AUS-95 | Ø10.5 Ø12.5 | 19 | 13.5 | 78 |
| AUS-120 | Ø12.5 Ø16.5 | 21 | 15.5 | 86 |
| AUS-150 | Ø12.5 Ø16.5 | 23.5 | 17 | 94 |
| AUS-185 | Ø16.5 | 25.5 | 19 | 101 |
| AUS-240 | Ø16.5 | 29 | 21.5 | 111 |
| AUS-300 | Ø16.5 Ø20.5 | 32 | 24.5 | 119 |
Crimp Lugs JGA Series
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGA-1.5 | Ø4.2 Ø5.2 | 3.5 | 1.8 | 18 |
| JGA-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.5 | 19 |
| JGA-4 | Ø5.2 Ø6.2 | 4.8 | 3.1 | 21 |
| JGA-6 | Ø5.2 Ø6.2 Ø8.2 | 5.5 | 3.8 | 24 |
| JGA-10 | Ø6.2 Ø8.2 | 6.8 | 4.8 | 25.5 |
| JGA-16 | Ø6.2 Ø8.2 Ø10.5 | 7.5 | 5.5 | 30.5 |
| JGA-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7 | 34 |
| JGA-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGA-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 9.8 | 45 |
| JGA-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 11.5 | 50 |
| JGA-95 | Ø10.5 Ø12.5 | 17.5 | 13.8 | 55.5 |
| JGA-120 | Ø10.5 Ø16.5 | 19.5 | 15.5 | 63 |
| JGA-150 | Ø12.5 Ø16.5 | 21 | 16.5 | 71 |
| JGA-185 | 16.5 | 23.5 | 18.8 | 78 |
| JGA-240 | 16.5 | 26.5 | 21 | 92 |
| JGA-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGA-400 | Ø16.5 Ø20.5 | 34 | 26.5 | 113 |
| JGA-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGA-630 | 20.5 | 45 | 35 | 135 |
SC cable lugs are very simple devices. They consist of a connector that is attached to one end of a cable, and a contact that is attached to the electric equipment. The connector is typically either crimped or soldered in place.
