Shear Bolt Lugs with Concentric Palm

Shear bolt lugs with concentric palm is used for connecting the electrical power cable to the electric equipment,such as insulator’s heads,transformers,and busbars.

Origin: China

Material: Aluminum alloy

Conductor range: 25-800mm2

OEM: Acceptable

Send Inquiry
Description

Description

Shear Bolt Lugs with Concentric Palm

Shear bolt lugs with concentric palm is used for connecting the electrical power cable to the electric equipment,such as insulator’s heads,transformers,and busbars.The bolt type torque terminal is suitable for the connection between the conductor and the connection point of the flat-type electrical equipment in the distribution line of 10kV and below, and the connection method is a crimp-free mechanical connection.

Material of Mechanical Lug

Aluminum alloy tin plated

Mechanical Shear Bolt Terminal Lug
Type Code Cable range
mm2
Dia. Of mounting hole Dimension(mm) No.of Torque bolts Bolts head size
L L1 D d AF
LSA-25/95-13 LSA-1 25-95 13 74 60 24 12.8 1 13
LSA-35/150-13 LSA-2 35-150 13 100 86 28 15.8 1 17

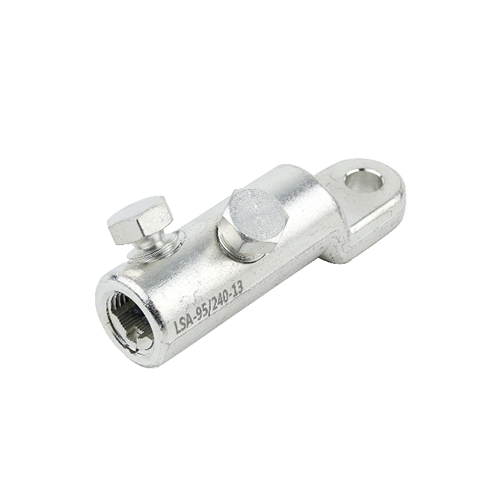

LSA-95/240-13 LSA-3 95-240 13 129 112 33 20 2 19
LSA-120/300-13 LSA-4 120-300 13 140 120 37 24 2 22
LSA-185/400-13 LSA-5 185-400 13 160 137 42 25.5 3 22
LSA-500/630-13 LSA-6 500-630 13 175 150 50 33 3 27
LSA-800-13 LSA-7 800 13 195 165 55 36 4 27

Bolt Type Torque Terminal Consists of:

  1. Shear head torque bolt
  2. Aluminum alloy tin plated body
  3. V shape accessories

Features of Mechanical Cable Lug

1.Applicable to various specifications of wires, eliminating tedious selection and inventory control, 10 to 800 square wires and cables can be used.

2. The mechanical connection design is adopted, avoiding the use of special installation tools for crimping, the operation is simple and reliable, and the artificial uncontrollability in the installation process is reduced.

3.Easy installation.Only a normal wrench is needed to complete the installation.

4. When the universal wrench acts on the upper hexagon of the mechanical bolt to meet the requirements, the mechanical bolt should be cut by itself when it reaches the preset installation torque, and the upper hexagonal nut should be broken, marking the completion of the installation, and the bolt section should not protrude from the body. Glitch free. The crimp force of the bolt to the wire is constant and sufficient to securely crimp the wire.
