Description
Tubular Lugs Manufacturer / Supplier / OEM

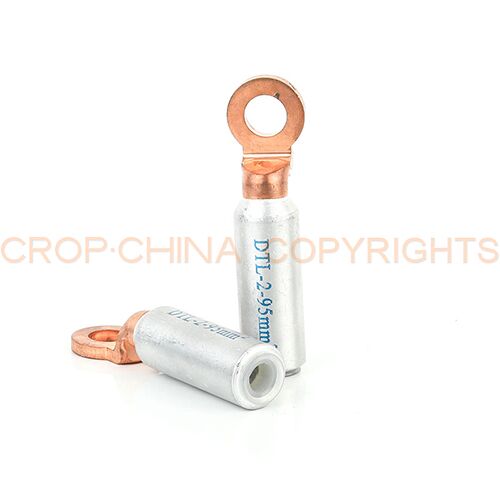

Tubular lugs are a type of bimetallic lug. They are made of aluminum and copper, and are welded together. This creates a strong, durable joint. Tubular lugs are used when an aluminum cable needs to be terminated by a copper bus bar or contact. If only copper or aluminum lugs are used, a galvanic reaction can occur because of the dissimilar metals. The use of bimetallic lugs ensures a strong, durable joint.
Tubular Lugs Types
Bimetallic lug DTL-2 Series
Model | φ | D(mm) | d(mm) | L(mm) | L1(mm) |
---|---|---|---|---|---|
DTL-2-10 | φ13 | 16 | 5.5 | 87 | 42 |
DTL-2-16 | φ13 | 16 | 6.5 | 87 | 42 |
DTL-2-25 | φ13 | 16 | 8 | 87 | 42 |
DTL-2-35 | φ13 | 16 | 9 | 87 | 42 |
DTL-2-50 | φ13 | 20 | 11 | 87 | 43 |
DTL-2-70 | φ13 | 20 | 12.5 | 87 | 43 |
DTL-2-95 | φ13 | 20 | 13.5 | 87 | 43 |
DTL-2-120 | φ13 | 25 | 15.5 | 111 | 60 |
DTL-2-150 | φ13 | 25 | 17.5 | 111 | 60 |
DTL-2-185 | φ13 | 32 | 19.5 | 116 | 60 |
DTL-2-240 | φ13 | 32 | 22.5 | 116 | 60 |
DTL-2-300 | φ13 | 34 | 23.5 | 120 | 62 |
Cable Lug DTL2-S Series
Item No. | Dimension(mm) | ||||||
---|---|---|---|---|---|---|---|
D | d | d1 | L | L1 | S | W | |
DTL2-S-10 | 16 | 4.5 | 8.5 | 87 | 42 | 4.2 | 14 |
DTL2-S-16 | 16 | 5.5 | 8.5 | 87 | 42 | 4.2 | 14 |
DTL2-S-25 | 16 | 7 | 8.5 | 87 | 42 | 4.2 | 14 |
DTL2-S-35 | 16 | 8.5 | 8.5 | 87 | 42 | 4.2 | 14 |
DTL2-S-50 | 20 | 9.5 | 10.5 | 100 | 50 | 5.2 | 17 |
DTL2-S-70 | 20 | 11.5 | 10.5 | 100 | 50 | 5.2 | 17 |
DTL2-S-95 | 20 | 13 | 10.5 | 100 | 50 | 5.2 | 17 |
DTL2-S-120 | 25 | 15 | 13 | 120 | 60 | 6.2 | 21 |
DTL2-S-150 | 25 | 16.5 | 13 | 120 | 60 | 6.2 | 21 |
DTL2-S-185 | 32 | 18 | 13 | 125 | 60 | 7.2 | 25 |
DTL2-S-240 | 32 | 19.5 | 13 | 125 | 60 | 7.2 | 25 |
DTL2-S-300 | 34 | 23.5 | 13 | 145 | 65 | 8 | 30 |
DTL2-S-400 | 40 | 26 | 13 | 150 | 70 | 8 | 32 |
DTL2-S-500 | 40 | 29 | 13 | 150 | 70 | 8 | 32 |
Tubular Lugs with Square Palm
Type | Dimension | ||||
---|---|---|---|---|---|
d | D | L1 | L | B | |
DTL-2-35 | 8.5 | 16 | 40 | 117 | 22 |
DTL-2-50 | 9.8 | 16 | 42 | 117 | 22 |
DTL-2-70 | 11.5 | 18 | 48 | 133 | 28 |
DTL-2-95 | 13.5 | 21 | 52 | 144 | 28 |
DTL-2-120 | 15 | 23 | 53 | 148 | 34 |
DTL-2-150 | 16.5 | 25 | 56 | 152 | 34 |
DTL-2-185 | 18.5 | 27 | 58 | 163 | 40 |
DTL-2-240 | 21 | 30 | 60 | 168 | 40 |
DTL-2-300 | 24 | 34 | 65 | 180 | 50 |
DTL-2-400 | 27 | 38 | 70 | 192 | 50 |
Related Product of Bimetallic Lug
More cable lug types,please click here.
Catalogue download
If you want to know the Tubular Lugs price,please feel free contact us.
