Description
Description of Insulated heat shrink terminals

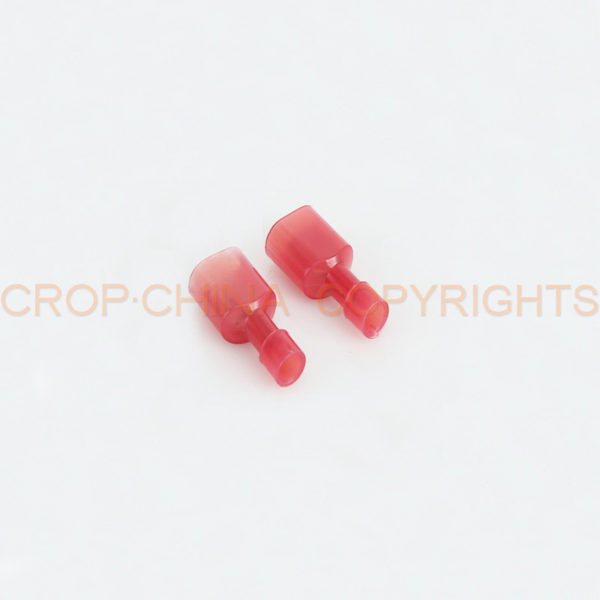

Insulated heat shrink terminals electrical wire crimp connector 12-10 AWG is a kind of accessory for electrical connections, which can be crimped on cable/wire/ electrical equipment.A wide range of premium quality lugs we can supply,and satisfy your different demands.
Material of electrical wire crimp connector
Terminal material:Pure Copper or brass
Insulating material:heat Shrinkable tube
Plating:Tin Plated
shrink Temp 150ºC
Operating Temp -10ºC–105ºC
| Item No. | Dimension(mm) | Colour | |||||
|---|---|---|---|---|---|---|---|
| B | C | D | F | L | W | ||
| FDFN 1.25-250 | 11 | 1.7 | 4 | 7.3 | 22 | 6.6 | Red |
| MDFN 1.25-250 | 11 | 7.7 | 23 | 6.35 | |||
| FDFN 2-250 | 11 | 2.3 | 4.5 | 7.3 | 22 | 6.6 | Blue |
| MDFN 2-250 | 11 | 7.7 | 24 | 6.35 | |||
| FDFN 5.5-250 | 13 | 3.4 | 6.3 | 7.3 | 24 | 6.6 | Yellow |
| MDFN 5.5-250 | 13 | 7.7 | 25 | 6.35 | |||
