ABC Suspension clamp for overhead lines
Description of ABC Suspension Clamp

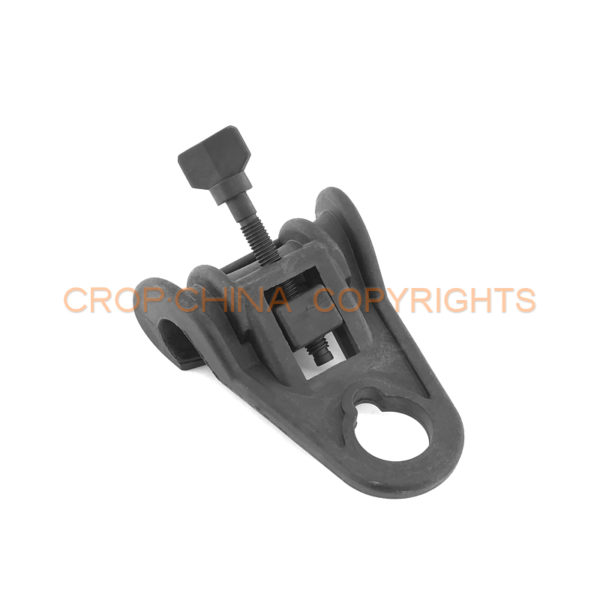

ABC Suspension Clamp for overhead lines is used for suspension LV insulated aerial cable (ABC) or Insulated Neutral Messenger conductors size from 16mm2 to 95mm2 in straight and at angles.Suspension clamp for overhead lines consists of a body,movable link and adjustable lock.The standard application is to support and suspend the conductor and to provide service connection by tapping main line.The application angle is ≤50 degree.It can be used with the pigtail bolt and bracket.The installation is very easy and convenient.
Materials of ABC suspension clamp
Body : UV and weather resistant, high strength engineering-plastic.
Movable Link : UV and weather resistant, high strength engineering-plastic.
Lock : UV resistant, high strength engineering-plastic
Performance of Suspension clamp for overhead lines
1.The manufacturer comply with NFC 33-041,EN61284,control quality as IS9001:2008.
2.It can be installation without tools.
3.The design facilitates longitudinal and lateral movement, allowing easy turning in crowded areas.
4.It can withstand extreme conditions to achieve long life,safety,low maintenance and reduce life costs.
5.The engineering plastics used provide additional insulation and strength, and make it possible to work with live lines.
The ABC suspension clamp SC series has two types,

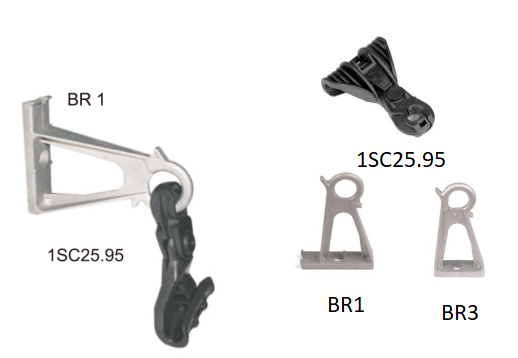

1.1SC25.95,the cable range is 16-95 sq mm,the strength is 15KN.It can be use with CROP bracket BR1,BR3 as below picture.

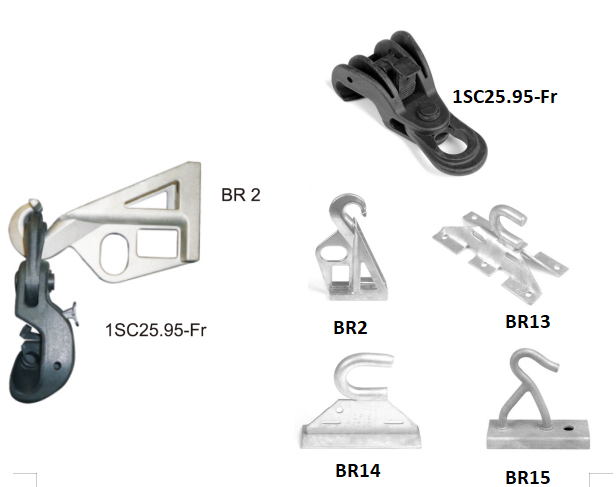

2.1SC25.95-Fr,the cable range is 16-95 sq mm,the strength is 15KN.It can be use with CROP bracket BR2 or other Bracket with hook as below picture.

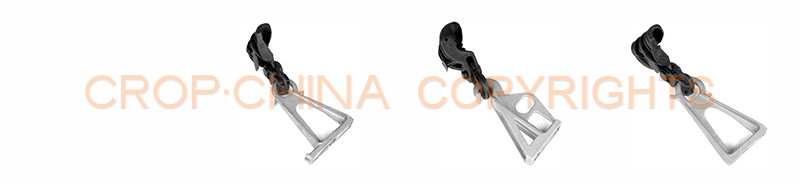

| Models | 1SC25.95+BR1 | 1SC25.95-Fr+BR2 | 1SC25.95+BR3 |
| Refer Code | CS1500 | CS1500 | ES1500 |
| Cable range (mm²) | 16-95 | 16-95 | 16-95 |
| MBL (daN) | Plastic: 900 Aluminium bracket:1500 |
Plastic: 900 Aluminium bracket:1500 |
Plastic: 900 Aluminium bracket:1500 |
*Note: You can order the suspension clamp without bracket or with bracket
