C Crimp Connectors,Copper C type Compression Connector

C Crimp Connectors

Origin: China

Material: Copper or Copper tinned

Conductor range: 10-895mm2

Applicable cable:

Copper C type connector is suitable for copper conductor,

Copper tinned C type connector is suitable for copper or aluminum conductor.

OEM: Acceptable

Send Inquiry
Category:
Description

Description

C Crimp Connectors,Copper C type Compression Connector

C crimp connectors also known as Copper C type compression connector, C type connector, are copper castings for the grounding system. is used for the branching and connection of conductor main lines in power transmission and distribution lines. It is made of T2 copper C-shaped material with 99.9% copper-containing beams of Caitong.

The C crimp connectors (C shaped energy saving power wire connection device) not only has all the advantages of the existing C-shaped wire clamp, but also pays attention to the material Special requirements and unique structural design.

The Copper C type compression connector has two types,one is copper,the other one is copper tinned.The Copper C type connector is suitable for copper conductor.And the Copper tinned C type connector is suitable for copper or aluminum conductor.



C Crimp Connectors

Parameters Table

Model Suitable section of conductor(mm²) A H L b C
CCT-10 7.5-14 9.5 6.2 12 1.6 4
CCT-16 14.5-16 11.8 7.8 13 2 5
CCT-20 16.5-20 12.8 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.9 16 3.2 6.5
CCT-44 27-44 19 14.4 20 4 8.5
CCT-60 45-60 21 15.1 22 4 9.7
CCT-76 61-76 24.4 17.6 22 5 10.8
CCT-98 77-98 27.8 18.8 25 5 12.8
CCT-122 99-122 29.8 21.2 26 5.5 13.5
CCT-154 123-154 34 24.4 28 6 17
CCT-190 155-190 37 25.4 35 6 17.4
CCT-240 191-240 40 28.5 40 7 19
CCT-288 141-288 44.5 31.1 45 7 22.3
CCT-365 289-365 47.5 34 50 7 24.8
CCT-450 366-450 57 41 60 10 28
CCT-560 451-560 62 45 65 11 31
CCT-700 561-700 68 49.5 70 12 34
CCT-895 630-895 72 45 66.5 12 31

Features of C Crimp Connectors

1.It is made by high-precision machine cutting,so the conductor range is accurate.

2.It has a long service life and good electrical conductivity.

3.The choice of special high-corrosion-resistant copper is a guarantee for the performance and quality of the product, the structure is more reasonable, and the installation is more convenient.

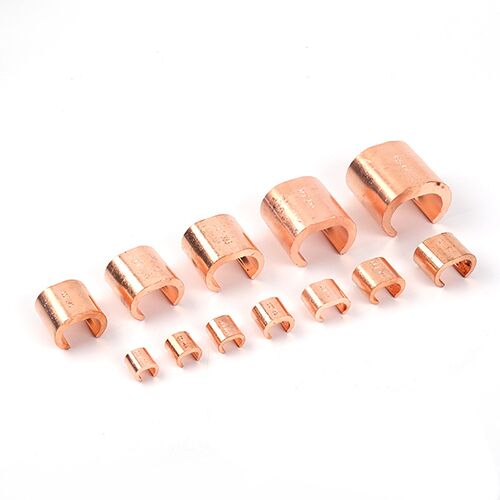

Extruded ‘C’ from copper

Copper C type Compression Connector
