Description

C Shape Copper Wire Clamp For Cable Connection Accessories

C shape copper wire clamp for cable connection accessories has a widely use,such as connecting and parallel the conductor of the overhead line.It also can be used in the grounding system to connect and parallel the conductor.It is made of pure copper,so it has a high strength and High corrosion resistance.

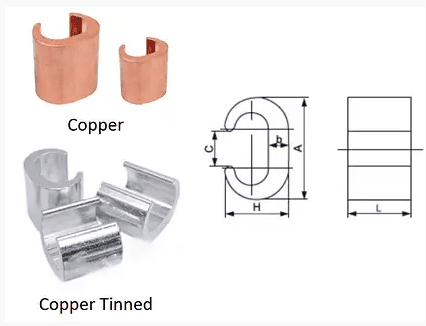

Dimension of C Shape Copper Wire Clamp

The copper compression connector have two types,one is copper,the other is copper tinned.The copper type can be connecting copper cable.The copper tinned type can be connect the copper conductor and aluminum conductor.

Copper Wire Clamp Parameters Table

Model	Suitable section of conductor(mm²)	A	H	L	b	C
CCT-10	7.5-14	9.5	6.2	12	1.6	4
CCT-16	14.5-16	11.8	7.8	13	2	5
CCT-20	16.5-20	12.8	9.7	13	2.9	5.4
CCT-26	21-26	14.7	10.9	16	3.2	6.5
CCT-44	27-44	19	14.4	20	4	8.5
CCT-60	45-60	21	15.1	22	4	9.7
CCT-76	61-76	24.4	17.6	22	5	10.8
CCT-98	77-98	27.8	18.8	25	5	12.8
CCT-122	99-122	29.8	21.2	26	5.5	13.5
CCT-154	123-154	34	24.4	28	6	17
CCT-190	155-190	37	25.4	35	6	17.4
CCT-240	191-240	40	28.5	40	7	19
CCT-288	141-288	44.5	31.1	45	7	22.3
CCT-365	289-365	47.5	34	50	7	24.8
CCT-450	366-450	57	41	60	10	28
CCT-560	451-560	62	45	65	11	31
CCT-700	561-700	68	49.5	70	12	34
CCT-895	630-895	72	45	66.5	12	31

Battery type crimping tools and associated die sets

Grounding C Crimps Tool

CROP can also supply the Battery type crimping tools and associated die sets.So it will be convenient for you to purchase, you can buy all C clips and tools in one place. We will be your most professional supplier.

Copper Extruded ‘C’
