Cable C Crimps

Cable C Crimps is also named Ground C Crimp.It is usually designed for tapping and parallel connecting of bare stranded copper cable or copper tinned stranded cable in grounding system application.The C Crimp Connectors is manufactured from high quality pure copper.The cable range of CROP C Shape Copper Wire Clamp is from 7.5mm2 to 895mm2,we have the wider cable range than other manufacturer.

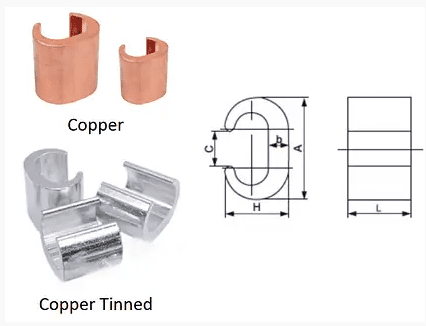

Dimension of C Crimp Connectors

Cable C Crimps

The C Crimp Connectors have two types,one is copper,the other is copper tinned.The copper type can be connecting copper cable.The copper tinned type can be connect the copper conductor and aluminum conductor.

Parameters Table

Model Suitable section of conductor(mm²) A H L b C
CCT-10 7.5-14 9.5 6.2 12 1.6 4
CCT-16 14.5-16 11.8 7.8 13 2 5
CCT-20 16.5-20 12.8 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.9 16 3.2 6.5
CCT-44 27-44 19 14.4 20 4 8.5
CCT-60 45-60 21 15.1 22 4 9.7
CCT-76 61-76 24.4 17.6 22 5 10.8
CCT-98 77-98 27.8 18.8 25 5 12.8
CCT-122 99-122 29.8 21.2 26 5.5 13.5
CCT-154 123-154 34 24.4 28 6 17
CCT-190 155-190 37 25.4 35 6 17.4
CCT-240 191-240 40 28.5 40 7 19
CCT-288 141-288 44.5 31.1 45 7 22.3
CCT-365 289-365 47.5 34 50 7 24.8
CCT-450 366-450 57 41 60 10 28
CCT-560 451-560 62 45 65 11 31
CCT-700 561-700 68 49.5 70 12 34
CCT-895 630-895 72 45 66.5 12 31

Battery type crimping tools and associated die sets

Grounding C Crimps Tool

CROP can also supply the Battery type crimping tools and associated die sets.So it will be convenient for you to purchase, you can buy all cable C Crimp and tools in one place. We will be your most professional supplier.

Copper Extruded ‘C’

C shape copper connector

Related Product of Copper Compression Connector

C Taps Copper Compression Connector
