Crimping Cable Lugs

Crimping Cable Lugs are a type of connector that are used to connect battery cables to the battery. They are made of copper tinned.

Ring type

Suitable conductor range: 1.5-630 sqmm



Send Inquiry
描述

描述

Crimping Cable Lugs for Connecting Battery Cables

Crimping Cable Lugs are a type of connector that are used to connect battery cables to the battery. They are made of copper tinned. They are made of copper because it is a good conductor of electricity. Tinning the copper makes it resistant to corrosion.

There are two main types of Crimping Cable Lugs: ring lugs and spade lugs.Ring lugs are connectors that have a ring-shaped protrusion on one end. They are designed to be crimped onto the end of a battery cable. Spade lugs are connectors that have a spade-shaped protrusion on one end. They are designed to be inserted into the end of a battery cable.Both ring lugs and spade lugs are available in a variety of sizes, depending on the size of the battery cable that they are used with.This page is introduced the ring lugs.

Cable Lug Type

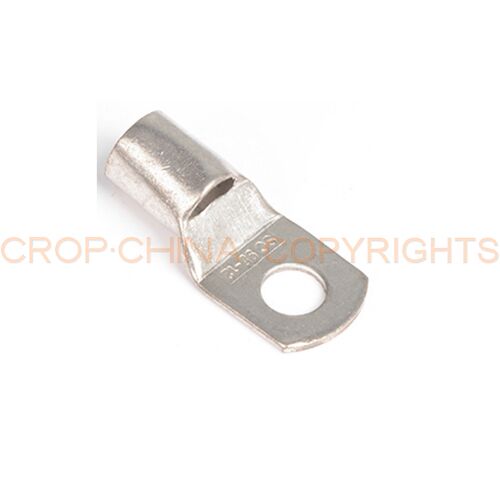

Crimping Cable Lugs JG Series

Battery Cable Lugs JG

Model Ø D(mm) d(mm) L(mm)
JG-10 Ø6.2 Ø8.5 8 5.4 38
JG-16 Ø6.2 Ø8.5 Ø10.5 9 6.5 41
JG-25 Ø6.2 Ø8.5 Ø10.5 10 7 46
JG-35 Ø6.2 Ø8.5 Ø10.5 Ø12.5 11 8 52
JG-50 Ø8.5 Ø10.5 Ø12.5 13 10 54
JG-70 Ø8.5 Ø10.5 Ø12.5 Ø14.5 16 12 61
JG-95 Ø8.5 Ø10.5 Ø12.5 Ø14.5 18 14 66
JG-120 Ø10.5 Ø12.5 Ø14.5 Ø16.5 19 15 73
JG-150 Ø10.5 Ø12.5 Ø14.5 Ø16.5 22 17 77
JG-185 Ø12.5 Ø14.5 Ø16.5 24 19 86
JG-240 Ø12.5 Ø14.5 Ø16.5 26 21 93
JG-300 Ø16.5 Ø18.5 30 24 103
JG-400 Ø16.5 Ø18.5 34 26 113
JG-500 Ø20.5 38 30 124
JG-630 Ø22.5 45 35 140

Copper Lug JGK(SC) Series

cable lugs SC

Model Ø D(mm) d(mm) L(mm)
JGK(SC)-1.5 Ø4.2 Ø5.5 3.5 2.1 18
JGK(SC)-2.5 Ø4.2 Ø5.2 Ø6.2 4 2.6 19
JGK(SC)-4 Ø5.2 Ø6.2 4.8 3.4 21
JGK(SC)-6 Ø5.2 Ø6.2 Ø8.2 6 4.3 24
JGK(SC)-10 Ø6.2 Ø8.2 Ø10.5 6.8 5.2 25.5
JGK(SC)-16 Ø6.2 Ø8.2 Ø10.5 8 6.5 30.5
JGK(SC)-25 Ø6.2 Ø8.2 Ø10.5 9 7.5 34
JGK(SC)-35 Ø6.2 Ø8.2 Ø10.5 Ø12.5 10.5 8.2 38
JGK(SC)-50 Ø8.2 Ø10.5 Ø12.5 12.5 10 45
JGK(SC)-70 Ø8.2 Ø10.5 Ø12.5 14.5 12 50
JGK(SC)-95 Ø8.2 Ø10.5 Ø12.5 17 14 55.5
JGK(SC)-120 Ø10.5 Ø12.5 Ø14.5 Ø16.5 19 15 63
JGK(SC)-150 Ø10.5 Ø12.5 Ø14.5 Ø16.5 21 17 71
JGK(SC)-185 Ø12.5 Ø14.5 Ø16.5 23 19 78
JGK(SC)-240 Ø12.5 Ø14.5 Ø16.5 26 21 92
JGK(SC)-300 Ø16.5 Ø20.5 30 24 102
JGK(SC)-400 Ø16.5 Ø20.5 34 27 113
JGK(SC)-500 Ø16.5 Ø20.5 38 30 123
JGK(SC)-630 Ø20.5 45 35 135

Battery Cable Lug AUS Series

crimp lugs AUS

Model Ø D(mm) d(mm) L(mm)
AUS-6 Ø5.2 Ø6.2 Ø8.2 5.5 3.8 31.5
AUS-10 Ø6.2 Ø8.2 6 4.5 34.5
AUS-16 Ø6.2 Ø8.2 Ø10.5 8.5 5.5 43.5
AUS-25 Ø6.2 Ø8.2 Ø10.5 10 7 48
AUS-35 Ø6.2 Ø8.2 Ø10.5 Ø12.5 12.5 8.2 52
AUS-50 Ø8.2 Ø10.5 Ø12.5 14.5 10 64
AUS-70 Ø8.2 Ø10.5 Ø12.5 16.5 11.5 68
AUS-95 Ø10.5 Ø12.5 19 13.5 78
AUS-120 Ø12.5 Ø16.5 21 15.5 86
AUS-150 Ø12.5 Ø16.5 23.5 17 94
AUS-185 Ø16.5 25.5 19 101
AUS-240 Ø16.5 29 21.5 111
AUS-300 Ø16.5 Ø20.5 32 24.5 119

Compression Lugs JGA Series

Cable Lugs

Model Ø D(mm) d(mm) L(mm)
JGA-1.5 Ø4.2 Ø5.2 3.5 1.8 18
JGA-2.5 Ø4.2 Ø5.2 Ø6.2 4 2.5 19
JGA-4 Ø5.2 Ø6.2 4.8 3.1 21
JGA-6 Ø5.2 Ø6.2 Ø8.2 5.5 3.8 24
JGA-10 Ø6.2 Ø8.2  6.8 4.8 25.5
JGA-16 Ø6.2 Ø8.2 Ø10.5 7.5 5.5 30.5
JGA-25 Ø6.2 Ø8.2 Ø10.5 9 7 34
JGA-35 Ø6.2 Ø8.2 Ø10.5 Ø12.5 10.5 8.2 38
JGA-50 Ø8.2 Ø10.5 Ø12.5 12.5 9.8 45
JGA-70 Ø8.2 Ø10.5 Ø12.5 14.5 11.5 50
JGA-95  Ø10.5 Ø12.5 17.5 13.8 55.5
JGA-120 Ø10.5 Ø16.5 19.5 15.5 63
JGA-150  Ø12.5  Ø16.5 21 16.5 71
JGA-185 16.5 23.5 18.8 78
JGA-240 16.5 26.5 21 92
JGA-300 Ø16.5 Ø20.5 30 24 102
JGA-400 Ø16.5 Ø20.5 34 26.5 113
JGA-500 Ø16.5 Ø20.5 38 30 123
JGA-630 20.5 45 35 135

Related product

Battery Lugs

More Battery Cable Lugs types,please click here.

Catalogue download

If you want to know the Crimping Cable Lugs price,please feel free contact us.
