Battery Terminal Lugs Description

The Battery Terminal Lugs is designed for terminating cables with a bolt, screw, or spring clip.The cable lug is also fitted with a lug capacity gauge to ensure that the correct size cable is being terminated. The compression lugs is a cost effective way to terminate cables and is perfect for field applications.

Cable Lug Material

It is made of aluminum and copper, it provides a secure and reliable connection.The aluminum and copper construction of this connector provides a secure and reliable connection.

Types of lugs

The Battery Terminal Lugs is suitable for a wide range of conductor sizes,making it a versatile choice for many applications.The suitable conductor size from 10 sqmm to 500sqmm,the other conductor size can be custimized according to your requirement.

Termination Lug DTL-2 Series

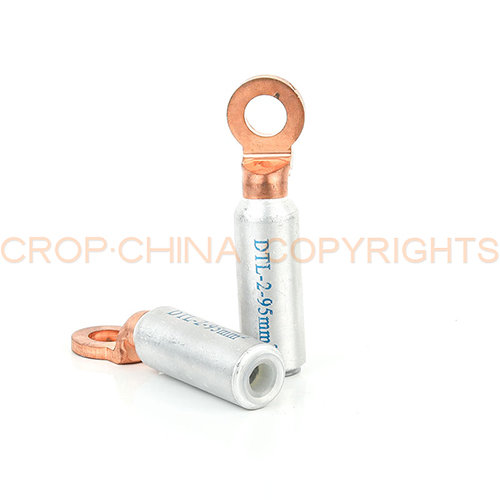

Battery Terminal Lugs

Model	φ	D(mm)	d(mm)	L(mm)	L1(mm)
DTL-2-10	φ13	16	5.5	87	42
DTL-2-16	φ13	16	6.5	87	42
DTL-2-25	φ13	16	8	87	42
DTL-2-35	φ13	16	9	87	42
DTL-2-50	φ13	20	11	87	43
DTL-2-70	φ13	20	12.5	87	43
DTL-2-95	φ13	20	13.5	87	43
DTL-2-120	φ13	25	15.5	111	60
DTL-2-150	φ13	25	17.5	111	60
DTL-2-185	φ13	32	19.5	116	60
DTL-2-240	φ13	32	22.5	116	60
DTL-2-300	φ13	34	23.5	120	62

Cable Lug DTL2-S Series

cable lug

Item No.	Dimension(mm)
Item No.	D	d	d1	L	L1	S	W
DTL2-S-10	16	4.5	8.5	87	42	4.2	14
DTL2-S-16	16	5.5	8.5	87	42	4.2	14
DTL2-S-25	16	7	8.5	87	42	4.2	14
DTL2-S-35	16	8.5	8.5	87	42	4.2	14
DTL2-S-50	20	9.5	10.5	100	50	5.2	17
DTL2-S-70	20	11.5	10.5	100	50	5.2	17
DTL2-S-95	20	13	10.5	100	50	5.2	17
DTL2-S-120	25	15	13	120	60	6.2	21
DTL2-S-150	25	16.5	13	120	60	6.2	21
DTL2-S-185	32	18	13	125	60	7.2	25
DTL2-S-240	32	19.5	13	125	60	7.2	25
DTL2-S-300	34	23.5	13	145	65	8	30
DTL2-S-400	40	26	13	150	70	8	32
DTL2-S-500	40	29	13	150	70	8	32

Type	Dimension
Type	d	D	L1	L	B
DTL-2-35	8.5	16	40	117	22
DTL-2-50	9.8	16	42	117	22
DTL-2-70	11.5	18	48	133	28
DTL-2-95	13.5	21	52	144	28
DTL-2-120	15	23	53	148	34
DTL-2-150	16.5	25	56	152	34
DTL-2-185	18.5	27	58	163	40
DTL-2-240	21	30	60	168	40
DTL-2-300	24	34	65	180	50
DTL-2-400	27	38	70	192	50

Related Product of Crimp Lug

CROP is the manufacture who is specialized manufacturer cable lug,copper lug,cable tube,cable lug pin type,mechanical shear bolt terminal lug,shear bolt mechanical connector,Copper C shape connector,Split Bolt Connector for 12 years.More Compression Lugs types,please click here.
