Description

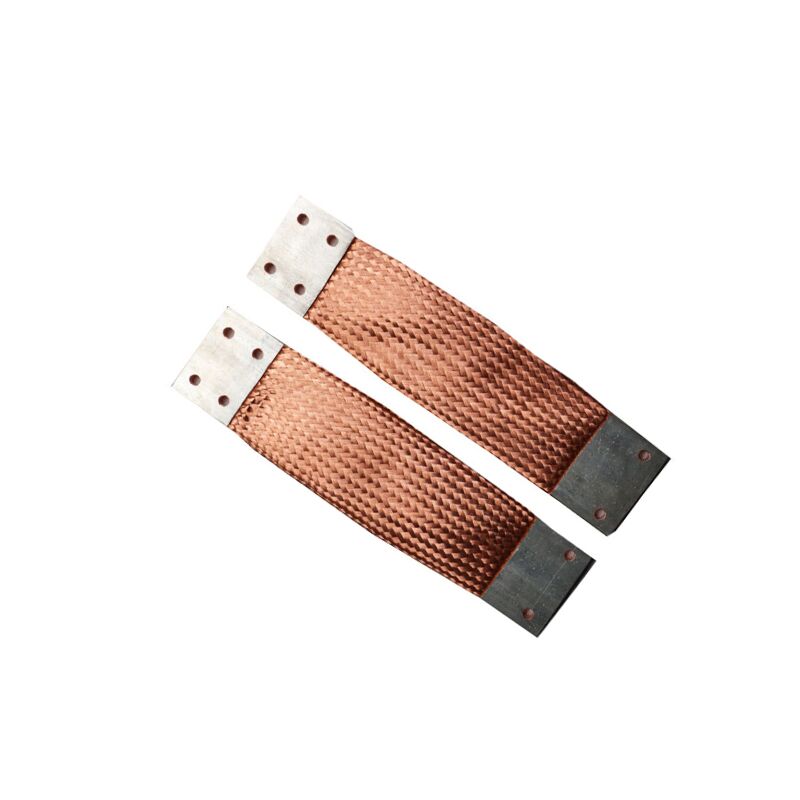

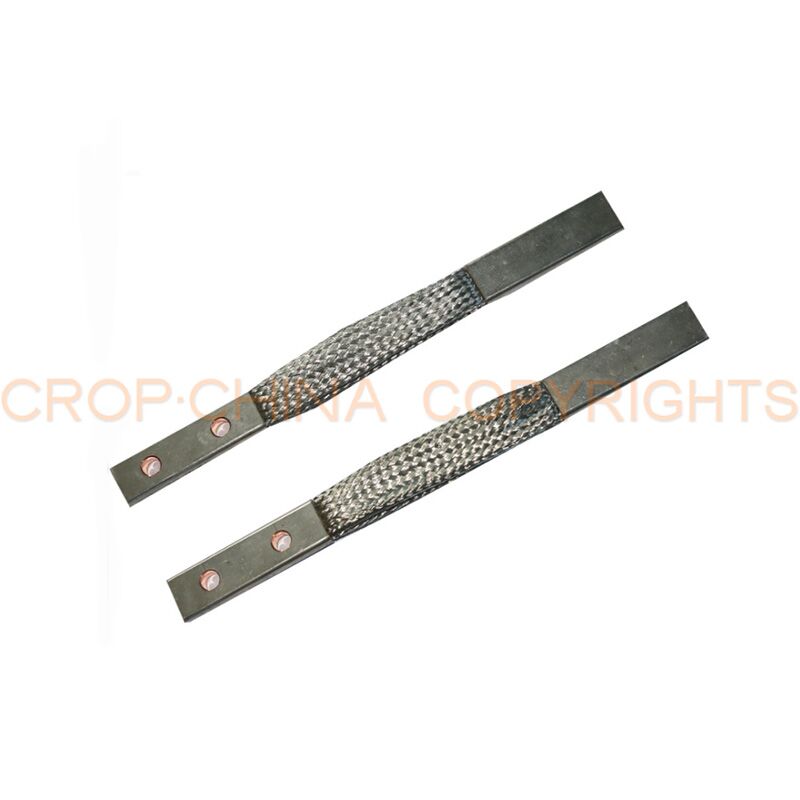

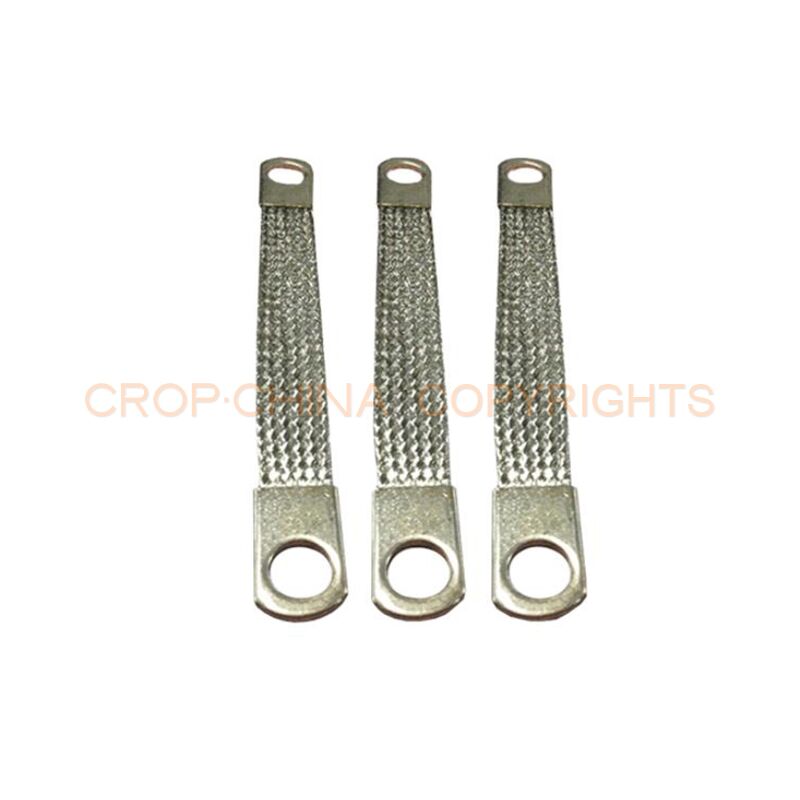

Description of flat copper braided busbar shunt connector
Flat copper braided busbar shunt connector manufactured out of flexible braided copper taps made out of annealed tinned Cu-ETP wires,with solderless pressed lugs,Ferrules,Welded Ends,the surface can be tinned or bare.Everywhere applicable where connections with smaller cross-sections made out of braided copper tapes are needed.
Single wire diameter: 0.05mm,0.07mm,0.10mm,0.12mm,0.127mm, 0.15mm, 0.2mm,0.25mm,0.254mm,0.3mm
Application:
The braided copper tape is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.
Also can be as shielding sleeve for wire harness etc.
Customized available for special dimension,shapes and structure.We can according to your drawing customized.

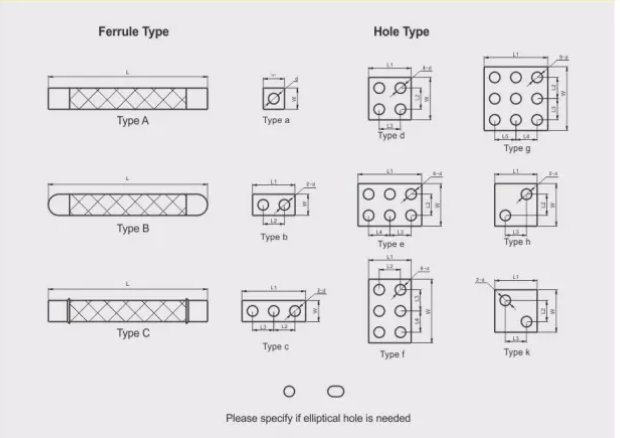

| Cross-section (mm²) | Dimension (mm) | Ferrule Type | Hole Type | |
|---|---|---|---|---|
| Hole dimension | L | |||
| 4 | According to customer requirement | According to customer requirement | A/B/C for your choose | a/b/c/d/e/f/g/h/k for your choose |
| 6 | ||||
| 8 | ||||
| 10 | ||||
| 14 | ||||
| 16 | ||||
| 25 | ||||
| 35 | ||||
| 50 | ||||
| 70 | ||||
Related Product of braided wire
If you want to know the Flat copper braided connector price,please feel free contact us.
