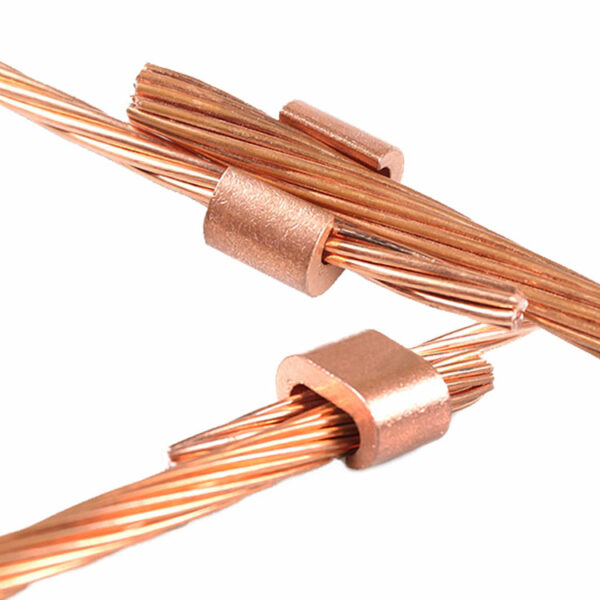

Ground C Crimp

Ground C crimp also named copper c connector.The side of this product looks like a C, so it is called a C connector.

Conductor range: 7.5 sqmm to 895 sqmm

Sample: Can be supply for free

OEM: Acceptable

Send Inquiry
描述

描述

Ground C Crimp

Ground C crimp also named copper c connector.The side of this product looks like a C, so it is called a C connector.The copper compression c connector has a widely use.The main application is used to connect the parallel copper cable on grounding system. It can also be used to connect the copper cable on the electrical system.The conductor range is suitable from 7.5 sqmm to 895 sqmm.

Ground C Crimp drawing

Ground C Crimp drawing

Parameters Table

Model Suitable section of conductor(mm²) A H L b C
CCT-10 7.5-14 9.5 6.2 12 1.6 4
CCT-16 14.5-16 11.8 7.8 13 2 5
CCT-20 16.5-20 12.8 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.9 16 3.2 6.5
CCT-44 27-44 19 14.4 20 4 8.5
CCT-60 45-60 21 15.1 22 4 9.7
CCT-76 61-76 24.4 17.6 22 5 10.8
CCT-98 77-98 27.8 18.8 25 5 12.8
CCT-122 99-122 29.8 21.2 26 5.5 13.5
CCT-154 123-154 34 24.4 28 6 17
CCT-190 155-190 37 25.4 35 6 17.4
CCT-240 191-240 40 28.5 40 7 19
CCT-288 141-288 44.5 31.1 45 7 22.3
CCT-365 289-365 47.5 34 50 7 24.8
CCT-450 366-450 57 41 60 10 28
CCT-560 451-560 62 45 65 11 31
CCT-700 561-700 68 49.5 70 12 34
CCT-895 630-895 72 45 66.5 12 31

Copper Compression C Connector Material

The Copper C connector is made of pure copper.It has two different surface treatment.One is nature,the other one is tinned.The nature treatment is just can be used for copper conductor,the tinned treatment can be used for copper conductor,also can be used for aluminum conductor,it can well realize the transition of copper-aluminum connection.

Copper Extruded ‘C’

Copper C type Compression Connector

The copper compression c connector is cut to a certain length from copper extruded C.

Related Product

Ground C crimp

Catalogue Download

If you want to know the Ground C crimp price,please feel free contact us.
