Insulation Piercing Tap Connector

Insulation piercing tap connector are required for tap-offs of bundled conductors and for connection of service conductors to bundled conductors.

*Copper tinned teeth can be used for copper or aluminum conductor.

Aluminum teeth can be used for aluminum conductor.

Sample: Free supply

OEM/ODM: Can be customized

Send Inquiry
Description

Description

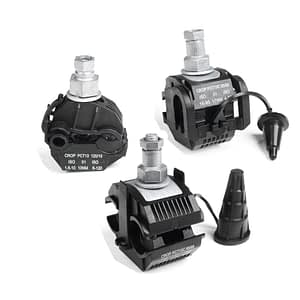

Insulation Piercing Tap Connector

Insulation piercing tap connector are required for tap-offs of bundled conductors and for connection of service conductors to bundled conductors.These connectors shall be of insulation piercing type both on the main and tap conductors.It is used to make connection between protected low voltage overhead lines (with neutral), transformers downspout or service drop cable.It is suitable for different combinations of aluminum and copper,main and branch conductor.

Insulation Piercing Connector Size

Conector dentado 25-95

CROP Model Equal Model Conductor range Packing
Main
(Al/Cu,Cu/Cu,Al/Al)
Tap
(Al/Cu,Cu/Cu,Al/Al)
Quantity/Carton Gross Weight.KG. Carton dimension CM
mm2 AWG mm2 AWG
PCT13C 95/10 DCNL-1 10-95 7-4/0 1.5-10 16-7 400 24.2 46.5X37X20
PCT13C 95/50 DCNL-2 16-95 5-4/0 4-50 12-1/0 150 23.7 46.5X37X20
PCT13C 95/95 DCNL-3 16-95 5-4/0 16-95 5-4/0 100 19 46.5X37X20
PCT13C 150/50 DCNL-4 50-150 1/0-300 4-50 12-1/0 150 24.7 46.5X37X20
PCT13C 150/150 DCNL-5 16-150 5-300 16-150 5-300 100 20.8 60X31X21

This specification is for a universal insulation piercing connector, suitable for different combinations of aluminium and copper, main and branch conductors.The thickness of insulation for both main and branch conductors shall not be greater than 2mm.

Piercing Tap Connector Structure

Insulation piercing connector structure
① Body  ② Contact plate (teeth)  ③Waterproof Sealing cover  ④ Cable end cap  ⑤ Grease ⑥ Shear head nut ⑦ Bolt ⑧ Washer

  • Upper and lower Body: made of a mechanically strong, weather resistant insulating material having also UV resistant characteristics.
  • Contact plate (teeth): Copper tinned,copper alloy tinned,aluminum
  • Waterproof Sealing cover: Flexible PVC
  • Cable end cap: Flexible PVC
  • Grease: Silica gel
  • Shear head nut: Zinc Alloy
  • Bolt: Hot dip galvanized steel, grade 8.8 or Dacromet
  • Washer: Hot dip galvanized steel or Dacromet
