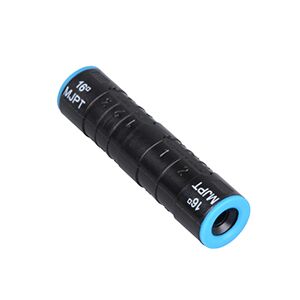

PRE-INSULATED SLEEVE

Description
These pre-insulated connectors are suitable for insulated stranded aluminum conductors.
Three connector versions are available to meet the mechanical load requirements for self-supporting system and systems with a neutral messenger.
Stripped cables are inserted up to the block in the connector. Crimping according to the marks with appropriate crimping die over the insulation. The electrical contact and the sealing by the elastomeric ring are achieved during the crimp process.



Type Cable Size(mm) C: Plastic Sleeve Diameter(mm) Length(mm) Color
A B
MJPT 16/16 16 16 17.3 70 Blue
MJPT 25/25 25 25 17.3 70 Orange
MJPT 35/35 35 35 21 99.5 Red
MJPT 50/50 50 50 21 99.5 Yellow
MJPT 54.6/54.6 54.6 54.6 21 99.5 Black
MJPT 70/70 70 70 21 99.5 White
MJPT 95/95 95 95 23.5 137 Gray

Related Product

Split Bolt Connectors

Features
• Suitable for stranded aluminum conductors
• Tested for water tightness at a voltage of 6kV for 30 min in a water bath
• A colour code of elastomeric sealing ring allows an easy identification of the cross sections
• Inner aluminum sleeve filled with contact grease
• Insulation material made of weather and UV resistant polymer Features
• Suitable for stranded aluminum conductors
• Tested for water tightness at a voltage of 6kV for 30 min in a water bath (NFC 33020, EN 50483-4 class 1)
• Exceeds requirements according to EN 50483-4 class 1 and NFC 33021
• A colour code of elastomeric sealing ring allows an easy identification of the cross sections
• Inner aluminum sleeve filled with contact grease
