Description

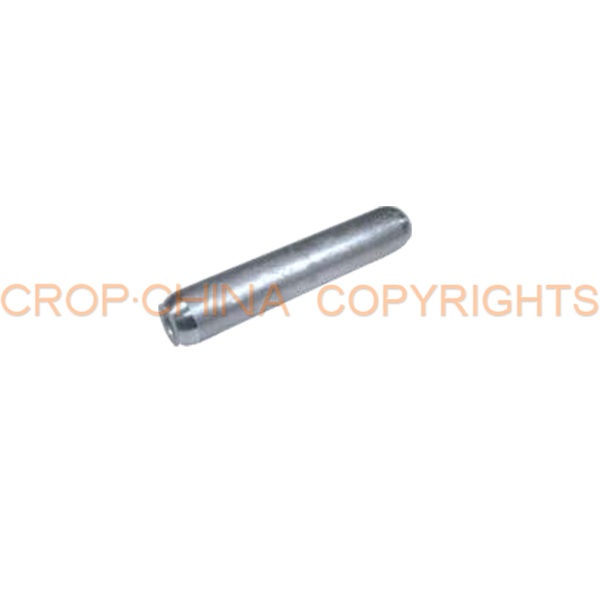

Aluminum splices,Medium Voltage for 10-33KV
Description:
The aluminum splices filled with neutral grease,extremities closed by a protection cap.
Standard:
IEC 61238

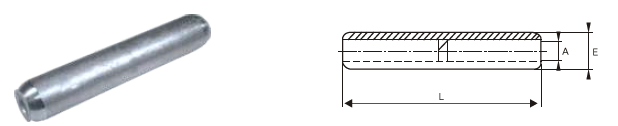

Same wire range
| Type | Section(mm²) | Dimension | ||
| A | E | L | ||
| GL 16 | 16 | 5.5 | 16 | 91 |
| GL 25 | 25 | 6.5 | 16 | 91 |
| GL 35 | 35 | 8 | 16 | 91 |
| GL 50 | 50 | 9 | 20 | 107 |
| GL 70 | 70 | 11 | 20 | 107 |
| GL 95 | 95 | 12.5 | 20 | 107 |
| GL 120 | 120 | 13.7 | 25 | 133.5 |
| GL 150 | 150 | 15.5 | 25 | 133.5 |
| GL 185 | 185 | 17 | 32 | 144 |
| GL 240 | 240 | 19.5 | 32 | 144 |
| GL 300 | 300 | 23.3 | 40 | 218.5 |
| GL 400 | 400 | 26 | 40 | 218.5 |
| GL 500 | 500 | 29.1 | 47 | 219 |
| GL 630 | 630 | 32.5 | 47 | 219 |

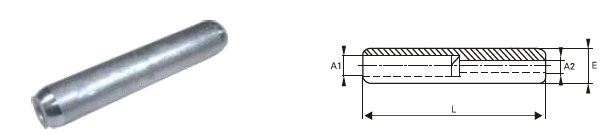

Un-equal wire ranges
| Type | Section(mm²) | Dimension | |||
| A1 | A2 | E | L | ||
| GL 35-25 | 35 25 | 8 | 6.5 | 16 | 90 |
| GL 50-25 | 50 25 | 9 | 6.5 | 20 | 107 |
| GL 50-35 | 50 35 | 9 | 8 | 20 | 107 |
| GL 70-35 | 70 35 | 11 | 8 | 20 | 107 |
| GL 70-50 | 70 50 | 11 | 9 | 20 | 107 |
| GL 95-25 | 95 25 | 12.5 | 6.5 | 20 | 107 |
| GL 95-35 | 95 35 | 12.5 | 8 | 20 | 107 |
| GL 95-50 | 95 50 | 12.5 | 9 | 20 | 107 |
| GL 95-70 | 95 70 | 12.5 | 11 | 25 | 107 |
| GL 150-35 | 150 35 | 15.5 | 8 | 25 | 133.5 |
| GL 150-50 | 150 50 | 15.5 | 9 | 25 | 133.5 |
| GL 150-70 | 150 70 | 15.5 | 11 | 25 | 133.5 |
| GL 150-95 | 150 95 | 15.5 | 12.5 | 25 | 133.5 |
| GL 150-120 | 150 120 | 15.5 | 13.7 | 32 | 133.5 |
| GL 240-50 | 240 50 | 19.5 | 9 | 32 | 144 |
| GL 240-70 | 240 70 | 19.5 | 11 | 32 | 144 |
| GL 240-95 | 240 95 | 19.5 | 12.5 | 32 | 144 |
| GL 240-120 | 240 120 | 19.5 | 13.8 | 32 | 144 |
| GL 240-150 | 240 150 | 19.5 | 15.5 | 32 | 144 |
| GL 240-185 | 240 185 | 19.5 | 17 | 32 | 144 |
