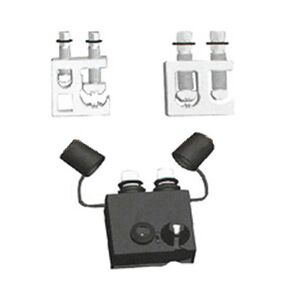

BT Connector JDBC, JDBB Series

BT Connector

Line: Cu or Alu  isolated.
Derivation: Cu or Alu isolated.
Insulation perforation of the main cable and stripping on the derived cable.

分类: 标签:
描述

描述

INSULATION PIERCIING CONNECTOR  (BT Connector)

Description
JBDC is to lead the branch from the bare main line while JBDD is to lead the branch from the insulated mainline, tighten the bolt with an idea torque which ensure the best quality of connection.
Material
High strength aIuminium alloy anti-UV plastic
Features
JBDC and JBDD series products have more function than JBDD

Models JBDC-1 JBDC-2 JBDC-3 JBDD-1  JBDD-2  JBDD-3
Main Line(mm²)  6-35  50-150 50-150  6-35  50-150 50-150
Service Line (mm²) 6-35  6-35 35-95 6-35  6-35 35-95
Remarks Bare Main to ISO Branch ISO Main to Bare Branch

Installation Steps
