Copper Lugs Ring Type

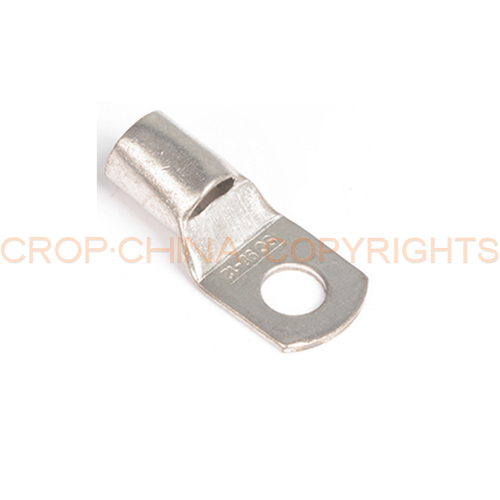

Copper Lugs Ring Type is a connector that is typically made from high-quality pure electrolytic copper.

Material: Copper tinned





Send Inquiry
Description

Description

Copper Lugs Ring Type

Copper Lugs Ring Type is a connector that is typically made from high-quality pure electrolytic copper. It has a barrel-type design that allows for a secure connection and is often used in power distribution and telecommunications applications. The ring type connector has a cylindrical body with a round, annular ring that is used to make the electrical connection. It is a reliable and durable connector that can withstand high levels of current and voltage. It is lead-free electro tin plated in order to prevent atmospheric corrosion.The lug has either a single-hole or multiple-hole version.The multiple-hole lug is best suited for applications where two or more bolts are needed to avoid rotation or movement of the lug.

Copper Lugs Ring Type

Copper lugs ring type JG Series

termination lug

Model Ø D(mm) d(mm) L(mm)
JG-10 Ø6.2 Ø8.5 8 5.4 38
JG-16 Ø6.2 Ø8.5 Ø10.5 9 6.5 41
JG-25 Ø6.2 Ø8.5 Ø10.5 10 7 46
JG-35 Ø6.2 Ø8.5 Ø10.5 Ø12.5 11 8 52
JG-50 Ø8.5 Ø10.5 Ø12.5 13 10 54
JG-70 Ø8.5 Ø10.5 Ø12.5 Ø14.5 16 12 61
JG-95 Ø8.5 Ø10.5 Ø12.5 Ø14.5 18 14 66
JG-120 Ø10.5 Ø12.5 Ø14.5 Ø16.5 19 15 73
JG-150 Ø10.5 Ø12.5 Ø14.5 Ø16.5 22 17 77
JG-185 Ø12.5 Ø14.5 Ø16.5 24 19 86
JG-240 Ø12.5 Ø14.5 Ø16.5 26 21 93
JG-300 Ø16.5 Ø18.5 30 24 103
JG-400 Ø16.5 Ø18.5 34 26 113
JG-500 Ø20.5 38 30 124
JG-630 Ø22.5 45 35 140

Copper lugs JGK(SC) Series

Cable Lug Type SC

Model Ø D(mm) d(mm) L(mm)
JGK(SC)-1.5 Ø4.2 Ø5.5 3.5 2.1 18
JGK(SC)-2.5 Ø4.2 Ø5.2 Ø6.2 4 2.6 19
JGK(SC)-4 Ø5.2 Ø6.2 4.8 3.4 21
JGK(SC)-6 Ø5.2 Ø6.2 Ø8.2 6 4.3 24
JGK(SC)-10 Ø6.2 Ø8.2 Ø10.5 6.8 5.2 25.5
JGK(SC)-16 Ø6.2 Ø8.2 Ø10.5 8 6.5 30.5
JGK(SC)-25 Ø6.2 Ø8.2 Ø10.5 9 7.5 34
JGK(SC)-35 Ø6.2 Ø8.2 Ø10.5 Ø12.5 10.5 8.2 38
JGK(SC)-50 Ø8.2 Ø10.5 Ø12.5 12.5 10 45
JGK(SC)-70 Ø8.2 Ø10.5 Ø12.5 14.5 12 50
JGK(SC)-95 Ø8.2 Ø10.5 Ø12.5 17 14 55.5
JGK(SC)-120 Ø10.5 Ø12.5 Ø14.5 Ø16.5 19 15 63
JGK(SC)-150 Ø10.5 Ø12.5 Ø14.5 Ø16.5 21 17 71
JGK(SC)-185 Ø12.5 Ø14.5 Ø16.5 23 19 78
JGK(SC)-240 Ø12.5 Ø14.5 Ø16.5 26 21 92
JGK(SC)-300 Ø16.5 Ø20.5 30 24 102
JGK(SC)-400 Ø16.5 Ø20.5 34 27 113
JGK(SC)-500 Ø16.5 Ø20.5 38 30 123
JGK(SC)-630 Ø20.5 45 35 135
