Description

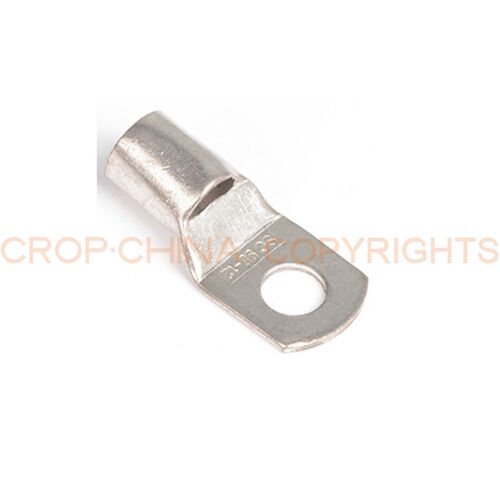

Copper Terminals

Copper terminals also named copper lugs. It is made of copper in order to optimize voltage transfer and inhibit metal oxidation.It can be found on the wiring systems of automobiles, electrical boxes, panels, generators, transformers, and many other durable goods.
The regular shape is with one stud or two stud.CROP copper lugs has many different size of stud.You can choose according to the diameter of bolt which you use.

Copper Terminals Material

The copper terminals is made of copper tinned.

Terminal Lugs Type

Copper terminals type JG Series

termination lug

Model	Ø	D(mm)	d(mm)	L(mm)
JG-10	Ø6.2 Ø8.5	8	5.4	38
JG-16	Ø6.2 Ø8.5 Ø10.5	9	6.5	41
JG-25	Ø6.2 Ø8.5 Ø10.5	10	7	46
JG-35	Ø6.2 Ø8.5 Ø10.5 Ø12.5	11	8	52
JG-50	Ø8.5 Ø10.5 Ø12.5	13	10	54
JG-70	Ø8.5 Ø10.5 Ø12.5 Ø14.5	16	12	61
JG-95	Ø8.5 Ø10.5 Ø12.5 Ø14.5	18	14	66
JG-120	Ø10.5 Ø12.5 Ø14.5 Ø16.5	19	15	73
JG-150	Ø10.5 Ø12.5 Ø14.5 Ø16.5	22	17	77
JG-185	Ø12.5 Ø14.5 Ø16.5	24	19	86
JG-240	Ø12.5 Ø14.5 Ø16.5	26	21	93
JG-300	Ø16.5 Ø18.5	30	24	103
JG-400	Ø16.5 Ø18.5	34	26	113
JG-500	Ø20.5	38	30	124
JG-630	Ø22.5	45	35	140

Copper lugs JGK(SC) Series

Cable Lug Type SC

Model	Ø	D(mm)	d(mm)	L(mm)
JGK(SC)-1.5	Ø4.2 Ø5.5	3.5	2.1	18
JGK(SC)-2.5	Ø4.2 Ø5.2 Ø6.2	4	2.6	19
JGK(SC)-4	Ø5.2 Ø6.2	4.8	3.4	21
JGK(SC)-6	Ø5.2 Ø6.2 Ø8.2	6	4.3	24
JGK(SC)-10	Ø6.2 Ø8.2 Ø10.5	6.8	5.2	25.5
JGK(SC)-16	Ø6.2 Ø8.2 Ø10.5	8	6.5	30.5
JGK(SC)-25	Ø6.2 Ø8.2 Ø10.5	9	7.5	34
JGK(SC)-35	Ø6.2 Ø8.2 Ø10.5 Ø12.5	10.5	8.2	38
JGK(SC)-50	Ø8.2 Ø10.5 Ø12.5	12.5	10	45
JGK(SC)-70	Ø8.2 Ø10.5 Ø12.5	14.5	12	50
JGK(SC)-95	Ø8.2 Ø10.5 Ø12.5	17	14	55.5
JGK(SC)-120	Ø10.5 Ø12.5 Ø14.5 Ø16.5	19	15	63
JGK(SC)-150	Ø10.5 Ø12.5 Ø14.5 Ø16.5	21	17	71
JGK(SC)-185	Ø12.5 Ø14.5 Ø16.5	23	19	78
JGK(SC)-240	Ø12.5 Ø14.5 Ø16.5	26	21	92
JGK(SC)-300	Ø16.5 Ø20.5	30	24	102
JGK(SC)-400	Ø16.5 Ø20.5	34	27	113
JGK(SC)-500	Ø16.5 Ø20.5	38	30	123
JGK(SC)-630	Ø20.5	45	35	135
