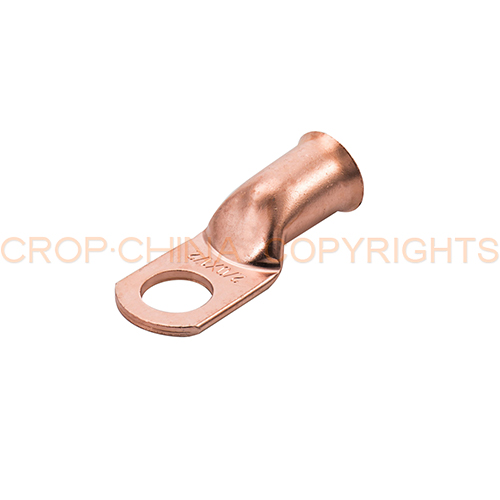

Copper Wire Lugs

Copper Wire Lugs are a great way to connect your power cables.Copper Lugs come in different sizes to fit different size cables. Made of pure copper, these lugs provide the best electrical connection and performance.With an economical price, they are a great way to connect large gauge wire and cable.

Copper Wire Lugs Type

Copper cable lug AWG type

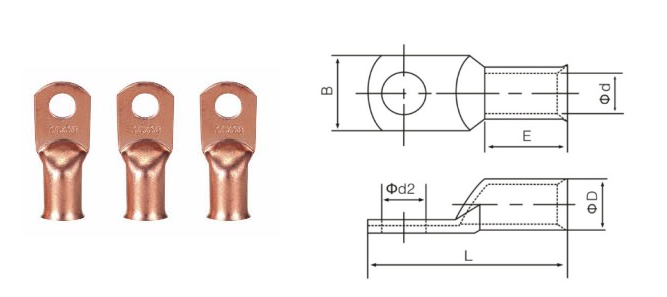

Battery Lugs

ITEM NO.	Dimension(mm)
ITEM NO.	Φd2	B	L	ΦD	Φd	E
AWG 8#10	5.1	11.8	33.3	7.1	4.8	13
AWG 8*1/4	6.8	11.8	33.3
AWG 8*5/16	8.3	11.8	33.3
AWG 8*3/8	10.4	14.5	33.3
AWG 8*1/2	13.1	17	33.3
AWG 6#10	5.1	11.8	37.3	8.1	5.9	15
AWG 6*1/4	6.8	13.7	37.3
AWG 6*5/16	8.3	13.7	37.3
AWG 6*3/8	10.4	13.7	37.3
AWG 6*1/2	13.1	17	37.3
AWG 4*1/4	6.8	13.8	38.9	9.5	7.3	15.5
AWG 4*5/16	8.3	13.8	38.9
AWG 4*3/8	10.4	14.5	38.9
AWG 4*1/2	13.1	17	38.9			15
AWG 2*1/4	6.8	16.5	41.1	11.1	8.5	16
AWG 2*5/16	8.3	16.5	41.1
AWG 2*3/8	10.4	16.5	41.1
AWG 2*1/2	13.1	17	41.1			15.3
AWG 1*1/4	6.8	16.4	43.6	11.7	9.1	16
AWG 1*5/16	8.3	16.4	43.6
AWG 1*3/8	10.4	17.1	43.6
AWG 1*1/2	13.1	19.1	43.6
AWG 1/0*1/4	6.8	18.4	46.8	13	10.4	19
AWG 1/0*5/16	8.3	18.4	46.8
AWG 1/0*3/8	10.4	18.4	46.8
AWG 1/0*1/2	13.1	21	46.8
AWG 2/0*1/4	6.8	21	52.4	14.2	11.7	22
AWG 2/0*5/16	8.3	21	52.4
AWG 2/0*3/8	10.4	21	52.4
AWG 2/0*1/2	13.1	21	52.4			21
AWG 3/0*5/16	8.3	23.1	55.9	15.7	13	22.5
AWG 3/0*3/8	10.4	23.1	55.9
AWG 3/0*1/2	13.1	23.1	55.9
AWG 4/0*5/16	8.3	25.8	60.5	17.2	14.2	24
AWG 4/0*3/8	10.4	25.8	60.5
AWG 4/0*1/2	13.1	25.8	60.5

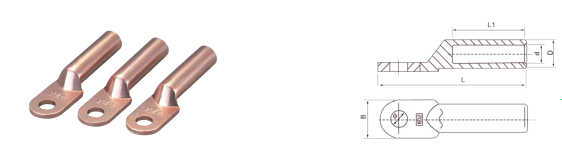

Copper Lugs DT Type

Copper Lug

Model	φ	D(mm)	d(mm)	L(mm)	L1(mm)	B(mm)
DT-10	φ8.5	9	5.3	62	28	16
DT-16	φ8.5	10	6.5	68	30	16
DT-25	φ8.5	11	7	70	33	18
DT-35	φ10.5	12	8.5	80	36	20.5
DT-50	φ10.5	14	10	85	38	23
DT-70	φ12.5	16	11.5	95	43	26
DT-95	φ12.5	18	13.5	104	46	28
DT-120	φ14.5	20	15	112	49	30
DT-150	φ14.5	22	16.5	120	51	34
DT-185	φ16.5	25	18.5	125	55	37
DT-240	φ16.5	27	21	136	60	40
DT-300	φ21	31	23.5	155	66	50
DT-400	φ21	34	26.5	170	75	50
DT-500	φ21	38	29	190	75	60
DT-630	φ21	45	35	220	85	80
DT-800	φ21	50	38	260	85	100

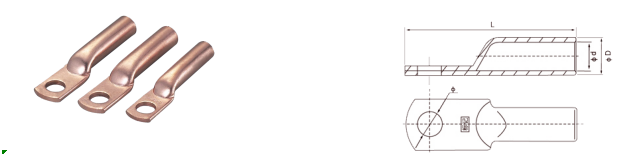

Copper Lugs Ring Type

Cable Lug

Model	φ	D(mm)	d(mm)	A(mm)	L3(mm)	L(mm)	L1(mm)
DTG-16	φ8.2	9	6	128	25	80	29
DTG-25	φ8.2	10	7	14.1	25	85	32
DTG-35	φ8.2	11	8	15.4	25	90	33
DTG-50	φ8.2	13	10	18.8	25	99	37
DTG-70	φ12.5	16	12	22.5	35	120	43
DTG-95	φ12.5	18	14	26	35	125	45
DTG-120	φ14.5	20	15.2	29	35	134	50
DTG-150	φ14.5	22	17	31.7	35	139	52
DTG-185	φ14.5	24	19	34.4	35	150	60
DTG-240	φ16.5	26	21	37.7	45	160	70
DTG-300	φ16.5	30	24	43.4	45	164	75
DTG-400	φ16.5	4	27	49	60	180	80
DTG-500	φ20.5	38	30	55.5	60	225	90
DTG-630	φ20.5	45	35	64.7	60	235	105
