Aluminum Parallel Groove Clamp

The aluminum parallel groove clamp bolt type PG clamp is made of high-quality aluminum, this clamp is built to last and can handle even the most strenuous projects.

Type: PG660

*For Al to Al conductor

Sample: Free supply

OEM/ODM: Can be customized

Send Inquiry
Description

Description

Aluminum Parallel Groove Clamp

The aluminum parallel groove clamp bolt type PG clamp is made of high-quality aluminum, this clamp is built to last and can handle even the most strenuous projects. Whether you’re working on a home improvement project or a professional one, this clamp is up for the task. Plus, it’s easy to use and adjust, so you can get just the right grip every time.

Product parameter of Parallel Groove Clamp

Aluminum Parallel Groove Clamp

Models PG660-11 PG660-12 PG660-22 PG660-23 PG660-24
Main Line(mm²) 16-70 16-150 16-70 16-150 25-185
Service Line (mm²) 16-70 16-150 16-70 16-150 25-185
Bolt No. 1 1 2 2 2
Remarks Al to Al  Al to Al  Al to Al  Al to Al  Al to Al

bolt type PG clamp

Models PG660-31 PG660-32 PG660-33 PG660-34
Main Line(mm²) 16-70 16-150 25-240 35-300
Service Line (mm²) 16-70 16-150 25-240 35-300
Bolt No. 3 3 3 3
Remarks Al to Al  Al to Al  Al to Al  Al to Al

Matrial of PG Clamp

The parallel groove clamp is made of plate-plate structure and aluminum alloy.

The bolt-type parallel groove clamp is used to fix the wire, relying on the pressure of the bolts to create a connection. The groove provides a relatively uniform and constant pressure on the wire, which can be disassembled after installation. It is often used at the jumper or ground wire lap joints at the strain end of the line. In order to ensure that the clamp has sufficient and even pressure on the wire, it is grooved. The parallel groove clamp generally adopts a two-bolt or three-bolt structure, and the installation requires uniform force when tightening the bolts. Sometimes in order to ensure the reliability of operation, two or three clamps are connected in parallel at equal intervals during line construction. The holding force of the bolt-type parallel groove clamp to the wire is about 10%-20% of the calculated breaking force of the wire..

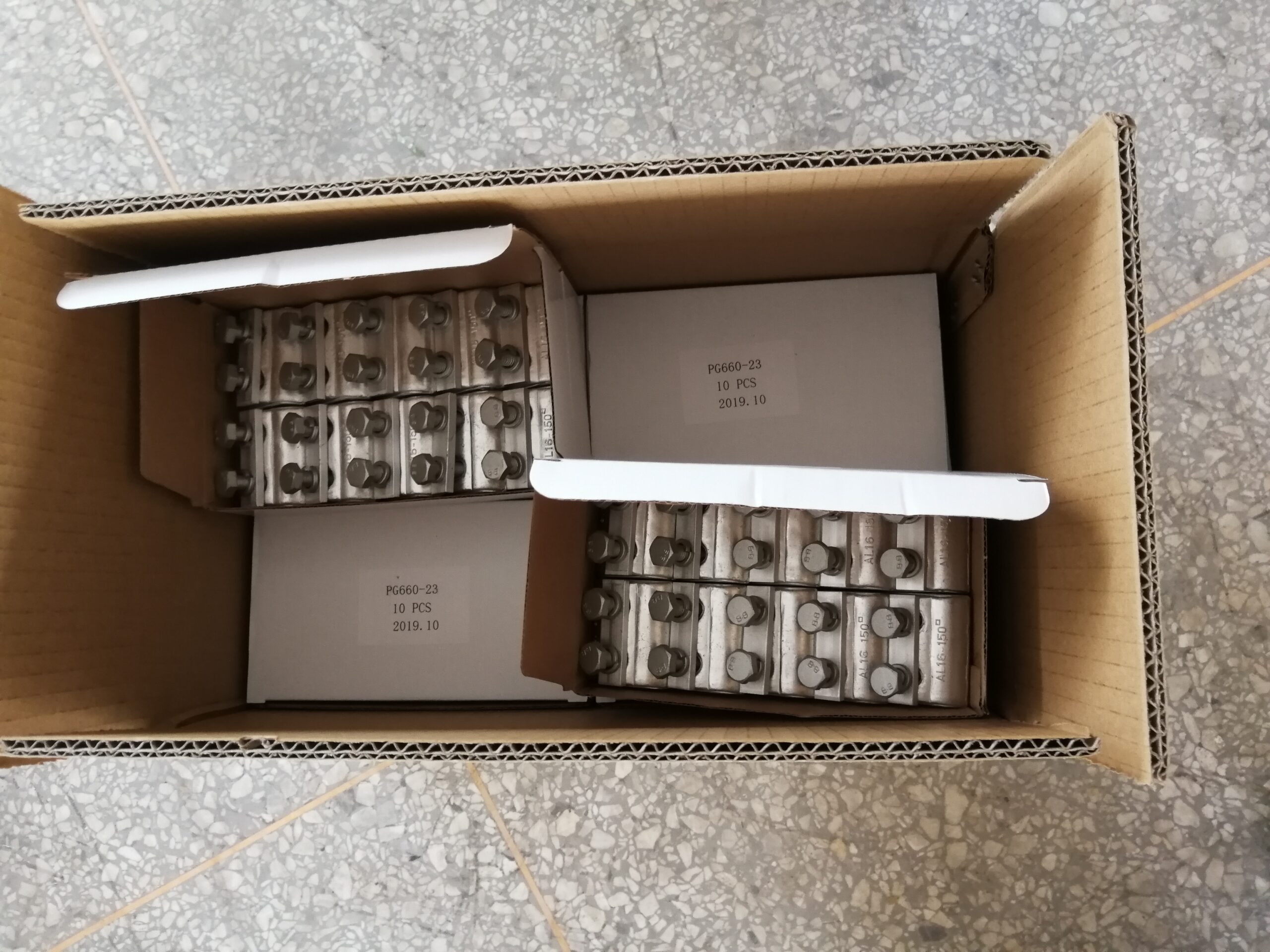

Packing of bolt-type parallel groove clamp

The inner packing is white box,the outer packing is carton.

PG clamp

Related product

Parallel Groove Connector

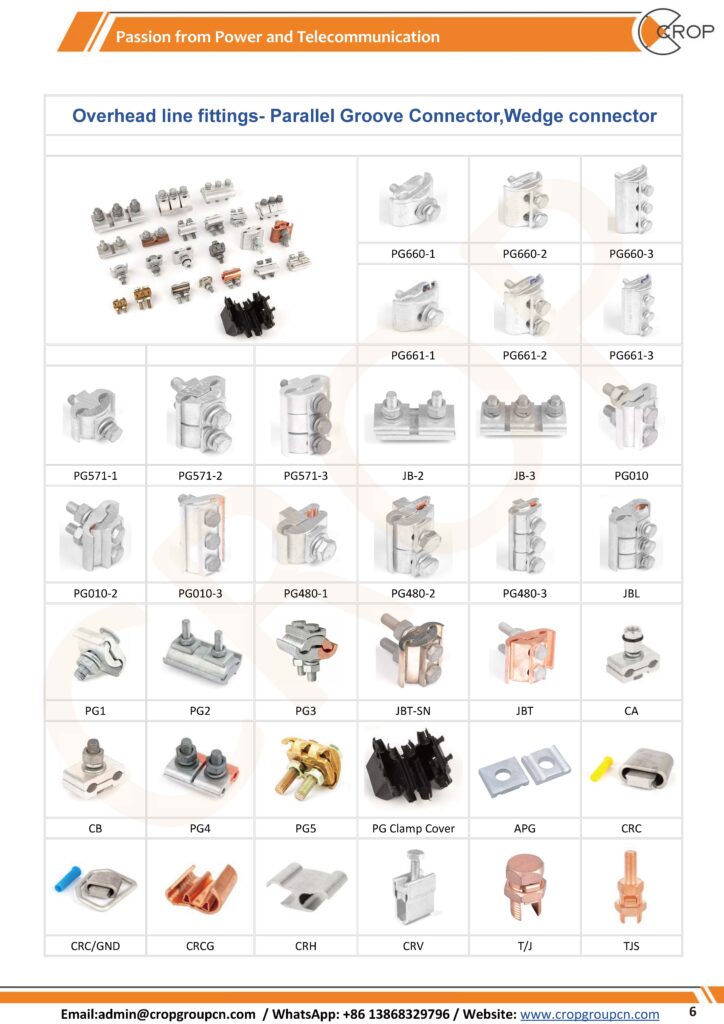

Catalogue download
