Description
C Shape Connector – Copper Tinned China Manufacturer / Supplier / Factory/ Customized / OEM

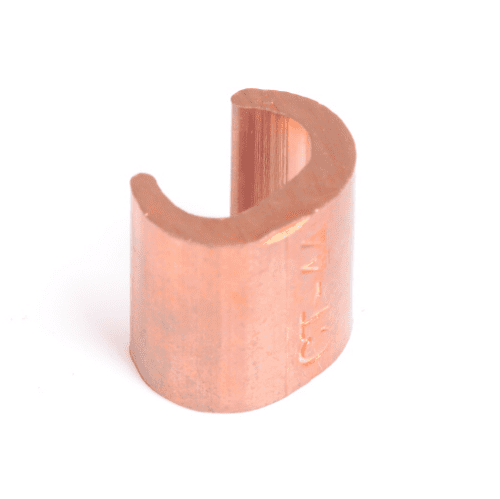

C shape connector also named copper c connector,it is used to connect copper conductor on the earthing system or tap off from the low voltage aerial bundle cable.It has two material types,one is made of 99.9% extruded ‘C’ from copper section,it can only connect copper conductor.The other one is made of 99.9% extruded ‘C’ from copper section with tinned,it can connect both copper conductor and aluminum conductor.
Cross section
The cross section of copper c connector is from 10 – 895 sqmm.If you need the cross section big than 895mm,we can customized.
Parameters Table
| Model | Suitable section of conductor(mm²) | A | H | L | b | C |
|---|---|---|---|---|---|---|
| CCT-10 | 7.5-14 | 9.5 | 6.2 | 12 | 1.6 | 4 |
| CCT-16 | 14.5-16 | 11.8 | 7.8 | 13 | 2 | 5 |
| CCT-20 | 16.5-20 | 12.8 | 9.7 | 13 | 2.9 | 5.4 |
| CCT-26 | 21-26 | 14.7 | 10.9 | 16 | 3.2 | 6.5 |
| CCT-44 | 27-44 | 19 | 14.4 | 20 | 4 | 8.5 |
| CCT-60 | 45-60 | 21 | 15.1 | 22 | 4 | 9.7 |
| CCT-76 | 61-76 | 24.4 | 17.6 | 22 | 5 | 10.8 |
| CCT-98 | 77-98 | 27.8 | 18.8 | 25 | 5 | 12.8 |
| CCT-122 | 99-122 | 29.8 | 21.2 | 26 | 5.5 | 13.5 |
| CCT-154 | 123-154 | 34 | 24.4 | 28 | 6 | 17 |
| CCT-190 | 155-190 | 37 | 25.4 | 35 | 6 | 17.4 |
| CCT-240 | 191-240 | 40 | 28.5 | 40 | 7 | 19 |
| CCT-288 | 141-288 | 44.5 | 31.1 | 45 | 7 | 22.3 |
| CCT-365 | 289-365 | 47.5 | 34 | 50 | 7 | 24.8 |
| CCT-450 | 366-450 | 57 | 41 | 60 | 10 | 28 |
| CCT-560 | 451-560 | 62 | 45 | 65 | 11 | 31 |
| CCT-700 | 561-700 | 68 | 49.5 | 70 | 12 | 34 |
| CCT-895 | 630-895 | 72 | 45 | 66.5 | 12 | 31 |
Copper Extruded ‘C’
