C Sleeve Connectors

C sleeve connectors also named copper c connector.It is suitable for connecting the conductor on the earthing systems and tapping off from the low voltage overhead lines.

Suitable conductor range: From 10sqmm to 895sqmm.

Material: Copper or Copper tinned.

Send Inquiry

Description

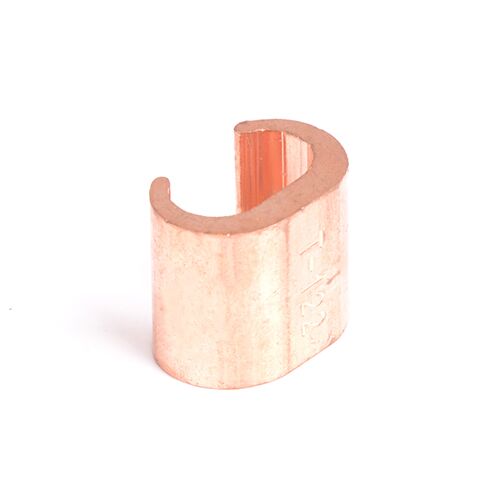

C Sleeve Connectors

C sleeve connectors also named copper c connector.It is suitable for connecting the conductor on the earthing systems and tapping off from the low voltage overhead lines.It can be used to connect the conductor or used with the earth rod.The C sleeve connectors made from the high conductive pure copper.It is cut from Copper Extruded ‘C’ according to different length requirements.

Dimension of C Sleeve Connectors

C shape copper connector Parameters Table

The C sleeve connectors has a wide range of suitable section of conductor.It is from 10sqmm to 895sqmm.

Model	Suitable section of conductor(mm²)	A	H	L	b	C
CCT-10	7.5-14	9.5	6.2	12	1.6	4
CCT-16	14.5-16	11.8	7.8	13	2	5
CCT-20	16.5-20	12.8	9.7	13	2.9	5.4
CCT-26	21-26	14.7	10.9	16	3.2	6.5
CCT-44	27-44	19	14.4	20	4	8.5
CCT-60	45-60	21	15.1	22	4	9.7
CCT-76	61-76	24.4	17.6	22	5	10.8
CCT-98	77-98	27.8	18.8	25	5	12.8
CCT-122	99-122	29.8	21.2	26	5.5	13.5
CCT-154	123-154	34	24.4	28	6	17
CCT-190	155-190	37	25.4	35	6	17.4
CCT-240	191-240	40	28.5	40	7	19
CCT-288	141-288	44.5	31.1	45	7	22.3
CCT-365	289-365	47.5	34	50	7	24.8
CCT-450	366-450	57	41	60	10	28
CCT-560	451-560	62	45	65	11	31
CCT-700	561-700	68	49.5	70	12	34
CCT-895	630-895	72	45	66.5	12	31

Battery type crimping tools and associated die sets

Grounding C Crimps Tool

CROP can also supply the Battery type crimping tools and associated die sets.So it will be convenient for you to purchase, you can buy all C clips and tools in one place. We will be your most professional supplier.

Copper Extruded ‘C’
