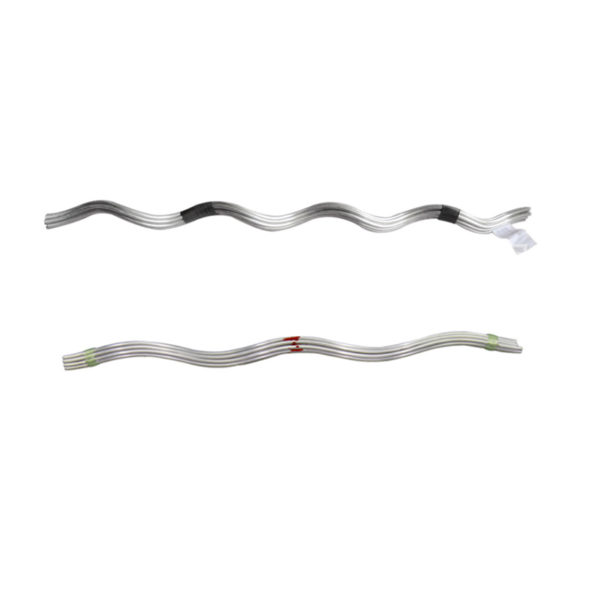

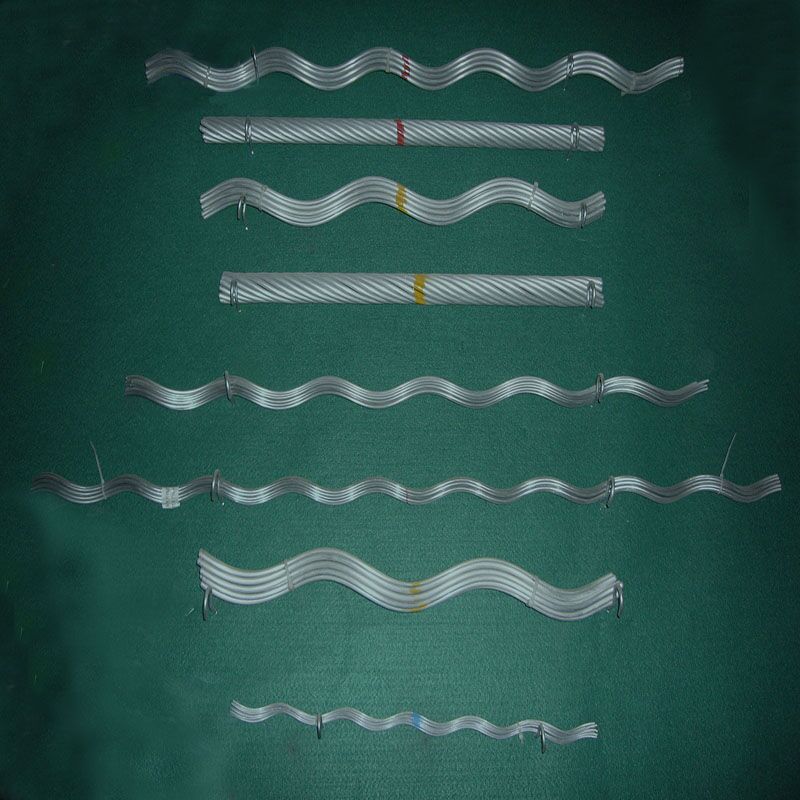

Preformed Armor Rod

Armor Rods are intended to protect against bending,compression,abrasion, arc-over,and to provide repair. The degree of protection needed on a specific line depends upon a number of factors such as line design,temperature,tension,exposure to wind flow, and vibration history on similar constrution in the same area.As a general guide,the following recommendations may be adopted to the specific conditions. Armor Rods are recommended as minimum protection for clamp-type supports or suspensions. Line Guards are recommended as minmum protection for hand-tied spans.The use of supplementary damping devices,such as Spiral Vibration Dampers,should be considered whenconductor vibration is present or expected.

Send Inquiry
Category:
Description

Description

Heliformed armor rod

Safety considerations
1.Preformed armor rod is intended for a single(one-time) use and for the specified application.
2.Heliformed armor rod is intended or use by trained craftspeople only.This product should not be used by anyone who is not farmiliar with and tranined in the use of if .
3.Whe working in the area of energized lines with this Product,extra care should be taken to prevent Accidental electrical contact.
4.For proper performance and personal Safety be sure to selectthe proper size Performed armor rods before application.
5.Preformed armor rods are precision devices.To insure proper performance,they should be stored in Cartons under cover and handled carefully.
6.The armor rod can use with much fitting.

Heliformed armor rod is used to protect the wire form vibration,clamp pressure stress,firction,arcing and all other esternal damages.Where the wire vibration is noy servere,helocal armour rod may protect wire from vibration,friction or other damags in short span lines.

Heliformed armour rod for ACSR

Model Applicable type of guide wire(GB1179-83)
Steel core aluminum stranded wire
LGJ/LGJF		 Reference length of wire clamp(mm) Monofil diameter
(mm)		 Color code
Model of wire outer diameter
CAR-35/6 35/6 8.16 1100 3 Red
CAR-50/8 50/8 9.60 1270 3 Black
CAR-95/15 95/15 13.61 1400 3.6 Yellow
CAR-95/20 95/20 13.87 1400 3.6 Yellow
CAR-95/55 95/55 16.00 1500 3.6 Red
CAR-120/7 120/7 14.50 1400 3.6 White
CAR-120/20 120/20 15.07 1400 3.6 Brown
CAR-120/25 120/25 15.74 1400 3.6 Red
CAR-120/70 120/70 18.00 1800 4.6 Brown
CAR-150/8 150/8 16.00 1500 3.6 Red
CAR-150/20 150/20 16.67 1500 3.6 Blue
CAR-150/25 150/25 17.10 1500 3.6 Blue
CAR-150/35 150/35 17.50 1500 3.6 Green
CAR-185/10 185/10 18.00 1800 4.6 Yellow
CAR-185/25 185/25 18.90 1800 4.6 White
CAR-185/30 185/30 18.88 1800 4.6 Green
CAR-185/45 185/45 19.60 1800 4.6 Orange
CAR-210/10 210/10 19.00 1800 4.6 White
CAR-210/25 210/25 19.98 1800 4.6 Orange
CAR-210/35 210/35 20.38 1800 4.6 Purple
CAR-210/50 210/50 20.86 1800 4.6 Purple
CAR-240/30 240/30 21.60 1900 4.6 Blue
CAR-240/40 240/40 21.66 1900 4.6 Blue
CAR-240/55 240/55 22.40 1900 4.6 Green
CAR-300/15 300/15 23.01 2000 6.3 Black
CAR-300/20 300/20 23.43 2000 6.3 Black
CAR-300/25 300/25 23.76 2000 6.3 White
CAR-300/40 300/40 23.94 2000 6.3 White
CAR-300/50 300/50 24.26 2000 6.3 White
CAR-300/70 300/70 25.20 2000 6.3 Orange
CAR-400/20 400/20 26.91 2200 6.3 Blue
CAR-400/35 400/35 26.82 2200 6.3 Blue
CAR-400/50 400/50 27.63 2200 6.3 Green
CAR-400/65 400/65 28.00 2200 6.3 Yellow
CAR-400/95 400/95 29.14 2500 6.3 White
CAR-500/35 500/35 30 2500 6.3 Orange
CAR-500/45 500/45 30 2500 6.3 Orange
CAR-500/65 500/65 30.96 2500 6.3 Purple
CAR-630/45 630/45 33.6 2500 7.8 Yellow
CAR-630/55 630/55 34.23 2500 7.8 Black
CAR-630/80 630/80 34.82 2500 7.8 Black
CAR-800/55 800/55 38.4 2500 7.8 Red
CAR-800/70 800/70 38.58 2500 7.8 Blue
CAR-800/100 800/100 38.98 2500 7.8 Yellow

Heliformed armour rod for AAAC

Model Applicable diameter of guide wire
(mm)		 Applicable type of guide wire
(GB1179-83)
Aluminum stranded wire LJ		 Reference length of wire clamp
(mm)		 Color code
Min. Max.
CAR-50L 8.81 9.30 50 1210 Green
CAR-70L 10.52 11.07 70 1320 Brown
CAR-95L 12.47 13.23 95 1370 Green
CAR-120L 14.01 14.86 120 1520 Red
CAR-150L 15.40 16.00 150 1500 Purple
CAR-185L 17.30 17.86 185 1730 Blue
CAR-210L 17.87 18.80 210 1830 Green
CAR-240L 20.69 21.46 240 1930 Red
CAR-300L 21.47 23.04 300 1980 Blue
CAR-400L 25.82 26.29 400 2380 Brown

Heliformed armour rod for steel conductor

Model Applicable diameter of guide wire
(mm)		 Applicable type of guide wire
(GB1179-83)
Steel stranded wire GJ		 Reference length of wire clamp
(mm)		 Color code
Min. Max.
CAR-25G 6.20 6.58 25 1020 Yellow
CAR-35G 7.37 7.82 35 1110 Red
CAR-50G 8.81 9.47 50 1210 Orange
CAR-70G 10.52 11.07 70 1320 Green
CAR-80G 11.09 11.76 80 1371 Yellow
CAR-90G 11.77 12.46 90 1400 Brown
CAR-95G 12.47 13.23 95 1420 Blue
CAR-100G 12.47 13.23 100 1420 Blue
