Description
Description of preformed insulator tie

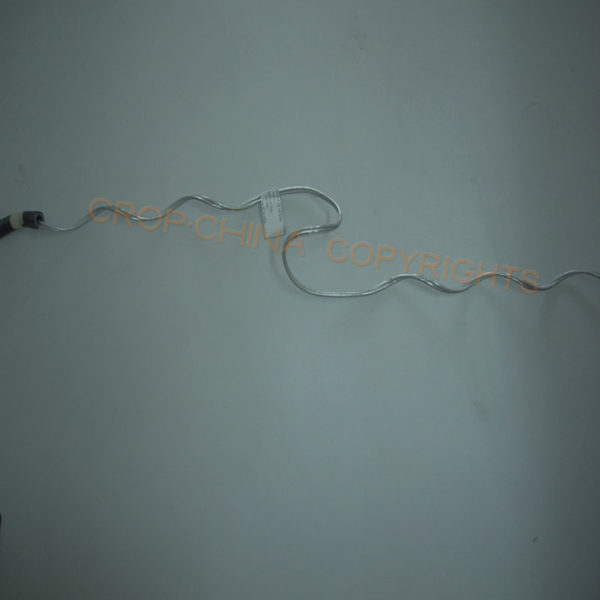

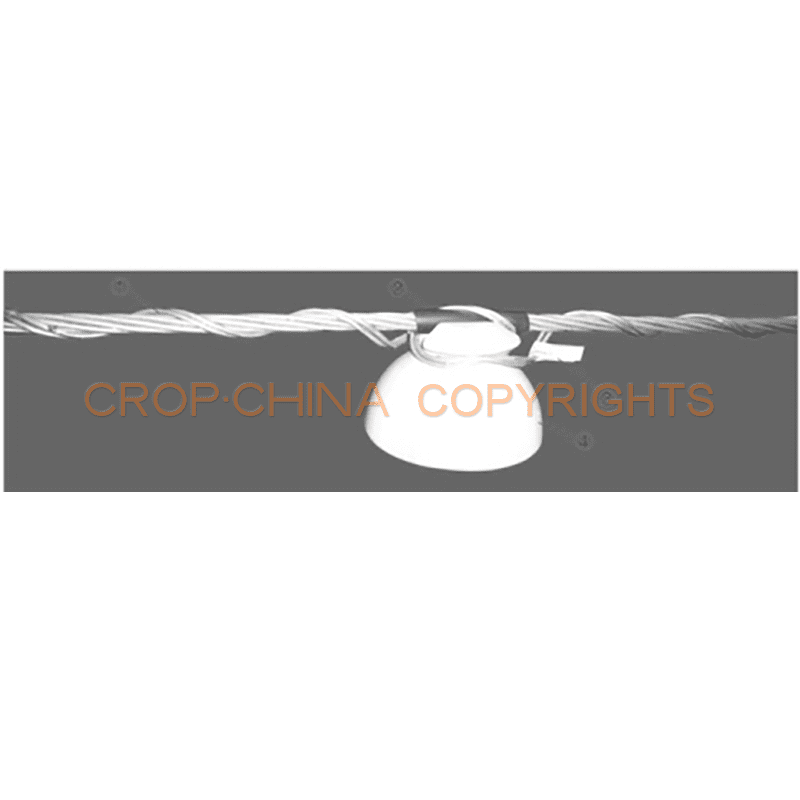

Preformed insulator tie also named distribution tie,the insulator tie will develop unbalanced and lift-off loads equivalent to,or in excess of, a hand tie over covered conductor. When installed with a pad on bare conductor, single line ties/top ties provide superior protection against abrasion and all types of conductor motion.The pad is a resilient cushion at the point of contact between conductor and insulator.
Material of distribution tie
Aluminum-clad steel with an elastomer pad
Insulators of insulator tie
Φ57mm (C Neck), Φ73mm (F neck) and Φ89mm (J neck)
Applicable conductor of preformed tie
ACSR, All-Aluminum, Aluminum Alloy and etc …
Fixed insulator line post neck C neck Φ57mm
| Model | Diameter range (mm) |
Approximate applied length (mm) |
Color code | |
|---|---|---|---|---|
| 14.3mm minimum groove radius | ||||
| DTT-5460-57 | 4.83 | 5.46 | 610 | Blue |
| DTT-6200-57 | 5.49 | 6.20 | 635 | Brown |
| DTT-7040-57 | 6.22 | 7.04 | 660 | Orange |
| DTT-8000-57 | 7.06 | 8.00 | 660 | Purple |
| DTT-9070-57 | 8.03 | 9.07 | 710 | Red |
| DTT-1029-57 | 9.09 | 10.29 | 760 | Yellow |
| DTT-1166-57 | 10.31 | 11.66 | 635 | Blue |
| DTT-1321-57 | 11.68 | 13.21 | 635 | Orange |
| DTT-1494-57 | 13.23 | 14.94 | 710 | Red |
| DTT-1689-57 | 14.96 | 16.89 | 760 | Purple |
| DTT-1918-57 | 16.92 | 19.18 | 785 | Brown |
| DTT-2172-57 | 19.20 | 21.72 | 815 | Red |
| 15.9mm minimum groove radius | ||||
| DTT-2459-57 | 21.74 | 24.59 | 865 | Blue |
| 19.1mm minimum groove radius | ||||
| DTT-2784-57 | 24.61 | 27.84 | 940 | Green |
| DTT-3150-57 | 27.86 | 31.5 | 940 | Yellow |
Fixed insulator line post neck F neck Φ73mm
| Model | Diameter range (mm) |
Approximate applied length (mm) |
Color code | |
|---|---|---|---|---|
| 14.3mm minimum groove radius | ||||
| DTT-5460-73 | 4.83 | 5.46 | 635 | Blue |
| DTT-6200-73 | 5.49 | 6.20 | 660 | Brown |
| DTT-7040-73 | 6.22 | 7.04 | 685 | Orange |
| DTT-8000-73 | 7.06 | 8.00 | 735 | Purple |
| DTT-9070-73 | 8.03 | 9.07 | 785 | Red |
| DTT-1029-73 | 9.09 | 10.29 | 815 | Yellow |
| DTT-1166-73 | 10.31 | 11.66 | 660 | Blue |
| DTT-1321-73 | 11.68 | 13.21 | 685 | Orange |
| DTT-1494-73 | 13.23 | 14.94 | 735 | Red |
| DTT-1689-73 | 14.96 | 16.89 | 815 | Purple |
| DTT-1918-73 | 16.92 | 19.18 | 815 | Brown |
| DTT-2172-73 | 19.20 | 21.72 | 840 | Red |
| 15.9mm minimum groove radius | ||||
| DTT-2459-73 | 21.74 | 24.59 | 890 | Blue |
| 19.1mm minimum groove radius | ||||
| DTT-2784-73 | 24.61 | 27.84 | 965 | Green |
| DTT-3150-73 | 27.86 | 31.5 | 1040 | Yellow |
