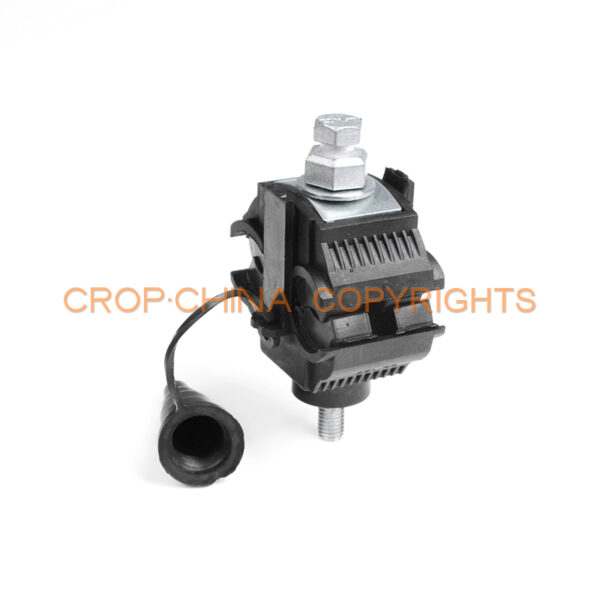

IPCs for Covered Conductors JBC-2

IPCs Insulation Piercing Connector

Origin: China

Type: JBC-2

Cable range: Main: 35-150mm2,Branch: 35-150 mm2

Bolt No.: 1

Torque: 17Nm

*Copper tinned teeth can be used for copper or aluminum conductor.

Aluminum teeth can be used for aluminum conductor.

Sample: Free supply

OEM/ODM: Can be customized

Send Inquiry
Description

Description

IPCs Insulation Piercing Connector for Covered Conductors

IPCs for covered conductors insulation piercing connector provide a fast,convenient and reliable method of connecting overhead low voltage mains to services or other mains.All common types of conductors can be interconnected,including insulated aluminum or copper.The IPCs can be used in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications.Fully insulated bolt provides safe live line working. Both main and branch conductor insulations are pierced by single bolt action. Test voltage 6 kV/50 Hz/1 min in water. Connector’s design enables live line installation without peeling insulation from conductor.

Application cable:

Main cable: Insulated copper or aluminum
Tap cable: Insulated copper or aluminum
Not suitable for multi stranded flexible cable or neutral screened cable.



Models JBC-0 JBC-1 JBC-2 PCT23C 240-240
Main Line(mm²) 25-70 35-70 35-150 50-240
Service Line (mm²) 6-35 6-35 35-150 50-240
Bolt No. 1 1 1 2
Torque (Nm) 10NM 13NM 17NM 23NM
Remarks ISO to ISO ISO to ISO ISO to ISO ISO to ISO

IPCs



Material of IPCs
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade
Washer, Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy

Related Product of insulation piercing connector

IPC connector

Features of IPCs Insulation Piercing Connector

• Simultaneous piercing on main & tap
• No need to strip cable to make the connection
• Provides a fully sealed,waterproof connection
• Captive end cap for protection of tap cable,which can be mounted on either side.
• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

IPCs Insulation Piercing Connector Catalogue Download
