Description

Insulated Lug

Ring Cable Lug are the perfect solution for terminating heavy gauge wire. The seamless pad design and pure copper construction make these lugs the ideal choice for any application where strength, conductivity and corrosion resistance are important.

Ring Cable Lug is designed to work with flexibly stranded copper wire and cable. Some of the applications that their lugs are commonly used for are welding cable, marine battery cable, UL Listed battery cables, SAE battery cables, and entertainment cable. Cable Lug also offers a wide variety of customization options to ensure that their lugs are a perfect fit for your specific application.

Different Types of Ring Cable Lug

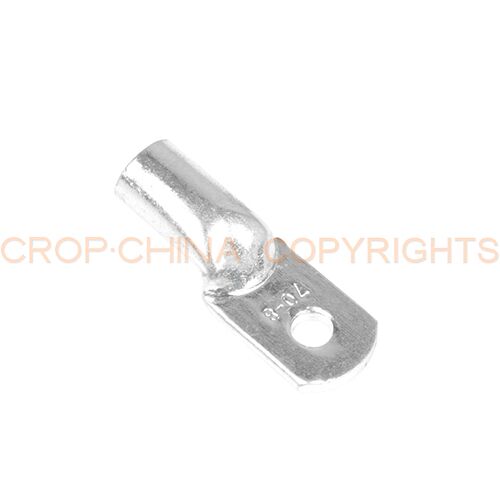

Ring Cable Lug JG Series

termination lug

Model	Ø	D(mm)	d(mm)	L(mm)
JG-10	Ø6.2 Ø8.5	8	5.4	38
JG-16	Ø6.2 Ø8.5 Ø10.5	9	6.5	41
JG-25	Ø6.2 Ø8.5 Ø10.5	10	7	46
JG-35	Ø6.2 Ø8.5 Ø10.5 Ø12.5	11	8	52
JG-50	Ø8.5 Ø10.5 Ø12.5	13	10	54
JG-70	Ø8.5 Ø10.5 Ø12.5 Ø14.5	16	12	61
JG-95	Ø8.5 Ø10.5 Ø12.5 Ø14.5	18	14	66
JG-120	Ø10.5 Ø12.5 Ø14.5 Ø16.5	19	15	73
JG-150	Ø10.5 Ø12.5 Ø14.5 Ø16.5	22	17	77
JG-185	Ø12.5 Ø14.5 Ø16.5	24	19	86
JG-240	Ø12.5 Ø14.5 Ø16.5	26	21	93
JG-300	Ø16.5 Ø18.5	30	24	103
JG-400	Ø16.5 Ø18.5	34	26	113
JG-500	Ø20.5	38	30	124
JG-630	Ø22.5	45	35	140

Kabel lug JGK(SC) Series

Cable Lug Type SC

Model	Ø	D(mm)	d(mm)	L(mm)
JGK(SC)-1.5	Ø4.2 Ø5.5	3.5	2.1	18
JGK(SC)-2.5	Ø4.2 Ø5.2 Ø6.2	4	2.6	19
JGK(SC)-4	Ø5.2 Ø6.2	4.8	3.4	21
JGK(SC)-6	Ø5.2 Ø6.2 Ø8.2	6	4.3	24
JGK(SC)-10	Ø6.2 Ø8.2 Ø10.5	6.8	5.2	25.5
JGK(SC)-16	Ø6.2 Ø8.2 Ø10.5	8	6.5	30.5
JGK(SC)-25	Ø6.2 Ø8.2 Ø10.5	9	7.5	34
JGK(SC)-35	Ø6.2 Ø8.2 Ø10.5 Ø12.5	10.5	8.2	38
JGK(SC)-50	Ø8.2 Ø10.5 Ø12.5	12.5	10	45
JGK(SC)-70	Ø8.2 Ø10.5 Ø12.5	14.5	12	50
JGK(SC)-95	Ø8.2 Ø10.5 Ø12.5	17	14	55.5
JGK(SC)-120	Ø10.5 Ø12.5 Ø14.5 Ø16.5	19	15	63
JGK(SC)-150	Ø10.5 Ø12.5 Ø14.5 Ø16.5	21	17	71
JGK(SC)-185	Ø12.5 Ø14.5 Ø16.5	23	19	78
JGK(SC)-240	Ø12.5 Ø14.5 Ø16.5	26	21	92
JGK(SC)-300	Ø16.5 Ø20.5	30	24	102
JGK(SC)-400	Ø16.5 Ø20.5	34	27	113
JGK(SC)-500	Ø16.5 Ø20.5	38	30	123
JGK(SC)-630	Ø20.5	45	35	135
