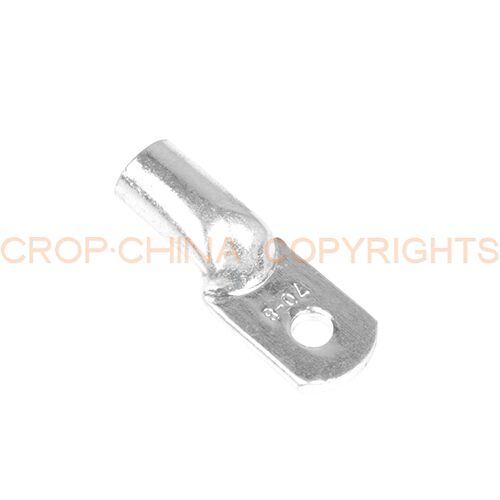

Electrical Cable Lugs
Electrical cable lugs is a connector that is used to join a cable to the terminals of an electrical device. It is a convenient and efficient way to make connections in assembly, maintenance, and repair processes. The cable lug provides a secure and reliable connection for the cable, and it is designed to withstand the rigors of everyday use.
The cable lugs come in a variety of sizes and shapes, and are made from a variety of materials, including copper and aluminum. They are typically used in electrical wiring, and are an important part of any electrical system.There are a variety of different types of electrical cable lugs, each of which has its own advantages and disadvantages.
Different Types of Electrical Cable Lugs
Cable Lugs JG Series
Model | Ø | D(mm) | d(mm) | L(mm) |
JG-10 | Ø6.2 Ø8.5 | 8 | 5.4 | 38 |
JG-16 | Ø6.2 Ø8.5 Ø10.5 | 9 | 6.5 | 41 |
JG-25 | Ø6.2 Ø8.5 Ø10.5 | 10 | 7 | 46 |
JG-35 | Ø6.2 Ø8.5 Ø10.5 Ø12.5 | 11 | 8 | 52 |
JG-50 | Ø8.5 Ø10.5 Ø12.5 | 13 | 10 | 54 |
JG-70 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 16 | 12 | 61 |
JG-95 | Ø8.5 Ø10.5 Ø12.5 Ø14.5 | 18 | 14 | 66 |
JG-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 73 |
JG-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 22 | 17 | 77 |
JG-185 | Ø12.5 Ø14.5 Ø16.5 | 24 | 19 | 86 |
JG-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 93 |
JG-300 | Ø16.5 Ø18.5 | 30 | 24 | 103 |
JG-400 | Ø16.5 Ø18.5 | 34 | 26 | 113 |
JG-500 | Ø20.5 | 38 | 30 | 124 |
JG-630 | Ø22.5 | 45 | 35 | 140 |
Tinned copper terminals JGK(SC) Series
Model | Ø | D(mm) | d(mm) | L(mm) |
JGK(SC)-1.5 | Ø4.2 Ø5.5 | 3.5 | 2.1 | 18 |
JGK(SC)-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.6 | 19 |
JGK(SC)-4 | Ø5.2 Ø6.2 | 4.8 | 3.4 | 21 |
JGK(SC)-6 | Ø5.2 Ø6.2 Ø8.2 | 6 | 4.3 | 24 |
JGK(SC)-10 | Ø6.2 Ø8.2 Ø10.5 | 6.8 | 5.2 | 25.5 |
JGK(SC)-16 | Ø6.2 Ø8.2 Ø10.5 | 8 | 6.5 | 30.5 |
JGK(SC)-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7.5 | 34 |
JGK(SC)-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
JGK(SC)-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 10 | 45 |
JGK(SC)-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 12 | 50 |
JGK(SC)-95 | Ø8.2 Ø10.5 Ø12.5 | 17 | 14 | 55.5 |
JGK(SC)-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 63 |
JGK(SC)-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 21 | 17 | 71 |
JGK(SC)-185 | Ø12.5 Ø14.5 Ø16.5 | 23 | 19 | 78 |
JGK(SC)-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 92 |
JGK(SC)-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
JGK(SC)-400 | Ø16.5 Ø20.5 | 34 | 27 | 113 |
JGK(SC)-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
JGK(SC)-630 | Ø20.5 | 45 | 35 | 135 |
