Full tension splice sleeve for aluminum conductor JY-L series

Send Inquiry
分类:
描述

描述

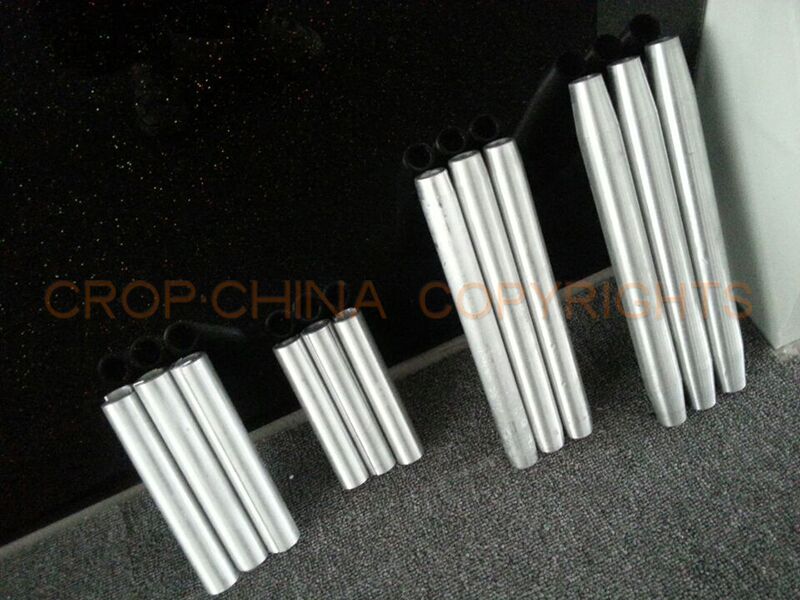

Description of full tension splice sleeve

Full tension splice sleeve are also named tension joint,splice sleeve are used for splicing or repairing conductor and ground wire of overhead transmission and distribution lines.tension joint provide a reliable,economical,and easy to install splicing method for overhead transmission and distribution lines.
aluminum splicing for aluminum conductor not only satisfy the basic tension requirements, but also deal with the problems of “cold flow” of aluminum and the oxide file which forms on the strands.
The DC resistance of splicing fitting must be less than that of the equi-length conductor,the temperature rise of all splicing fitting must be less than the splicing conductor.The slip strength of the compressive sleeve must be less than 95% of the rated strength of conductor.

Features of aluminum splicing

• Easy to install,just for use with CRIMP tools only.
• For aluminum, ACSR, compact, 5005, 6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
• Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended.

Suitable conductor of splice sleeve

Aluminum alloy conductor ( AAC )

Material of splicing fitting

Aluminum

Full tension splice sleeve,splice sleeve,splice,splicing fitting, aluminum splicing
Full tension splice sleeve,splice sleeve,splice,splicing fitting, aluminum splicing
Full tension splice sleeve,splice sleeve,splice,tension joint, aluminum splicing
Type Suitable Conductor Dimensions (mm) Grip Strength (> kN)
D F Ø L
JY-150L LJ-150 30 20 17.0 280 22
JY-185L LJ-185 32 20 19.0 310 27
JY-210L LJ-210 34 20 20.0 330 31
JY-240L LJ-240 36 20 21.5 350 34
JY-300L LJ-300 40 25 24.0 390 45
JY-400L LJ-400 45 25 27.5 450 58
JY-500L LJ-500 52 30 30.5 510 73
JY-630L LJ-630 60 35 34.0 570 87
JY-800L LJ-800 65 40 38.5 650 110
