Description of line splice

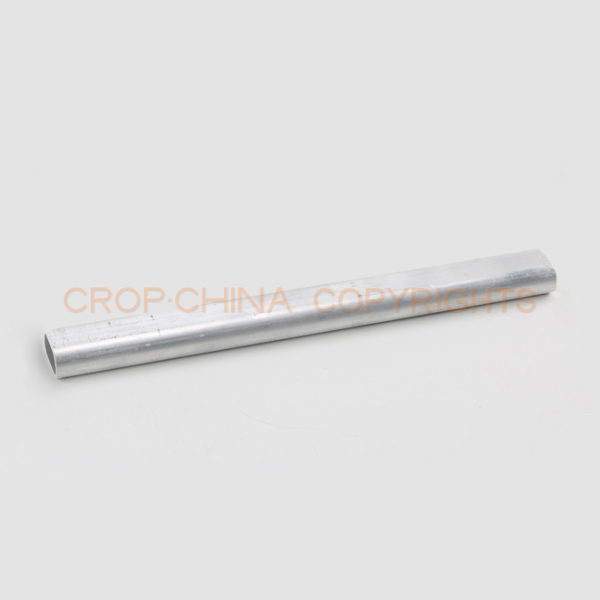

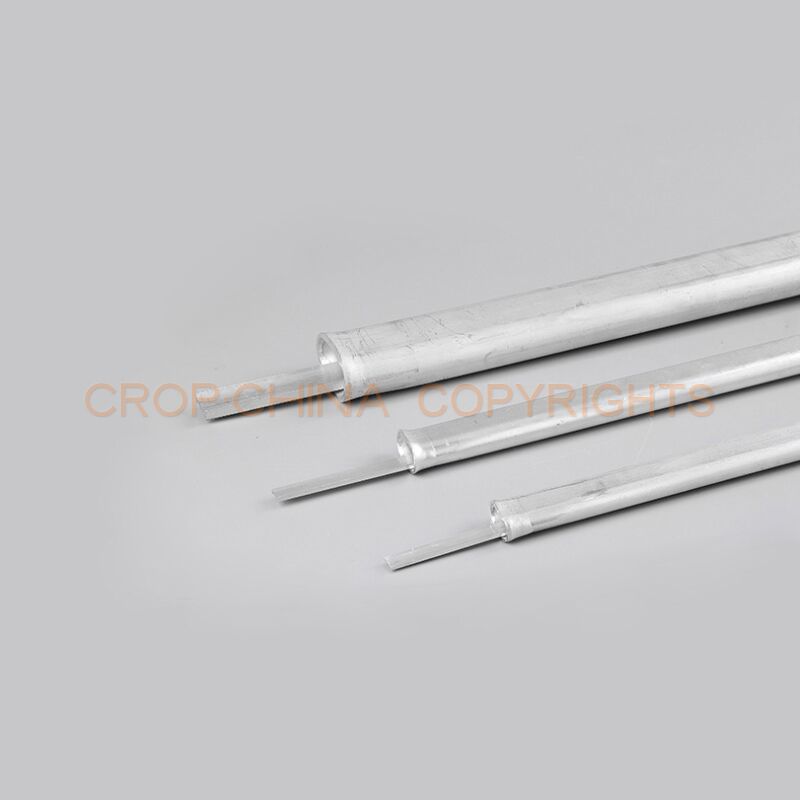

line splice are also named conductor joint,line splice are used for splicing or repairing aluminium conductor of overhead transmission and distribution lines.line splice provide a reliable,economical,and easy to install splicing method for overhead transmission and distribution lines.
conductor joint for aluminium conductor not only satisfy the basic tension requirements, but also deal with the problems of “cold flow” of aluminum and the oxide file which forms on the strands.The DC resistance of cable sleeve must be less than that of the equi-length conductor,the temperature rise of all conductor joint must be less than the splicing conductor.The slip strength of the splice connector must be less than 95% of the rated strength of conductor.
Features of conductor joint
Easy to install,just for use with CRIMP tools only.
For ACSR,compact,5005,6201 and ACAR partial tension (40% tension rating) conductor jumper splicing.
Aluminum alloy conductor recommendations include 5005 and ACAR having the same diameter as a given ACSR conductor shown below. In addition, compressed (compact) conductor sizes within the same decimal conductor range are recommended.
Suitable conductor of line splice
Aluminum conductor
Material of splice
Sleeve: Aluminum

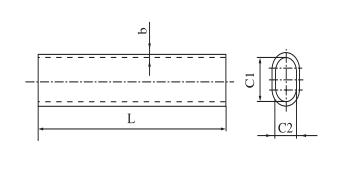

| Type | Suitable Conductor | Dimensions (mm) | Grip Strength (> kN) | |||
|---|---|---|---|---|---|---|
| b | C1 | C2 | L | |||
| JT-16L | LJ-16 | 1.7 | 12.0 | 6.0 | 110 | 2.7 |
| JT-25L | LJ-25 | 1.7 | 14.4 | 7.2 | 120 | 4.1 |
| JT-35L | LJ-35 | 1.7 | 1.7 | 8.5 | 140 | 5.5 |
| JT-50L | LJ-50 | 1.7 | 20.0 | 10.0 | 190 | 7.5 |
| JT-70L | LJ-70 | 1.7 | 23.7 | 11.7 | 210 | 10.0 |
| JT-95L | LJ-95 | 1.7 | 26.8 | 13.4 | 280 | 14.0 |
| JT-120L | LJ-120 | 2.0 | 30.0 | 15.0 | 300 | 18.0 |
| JT-150L | LJ-150 | 2.0 | 34.0 | 17.0 | 320 | 22.0 |
| JT-185L | LJ-185 | 2.0 | 38.0 | 19.0 | 340 | 27.0 |
| JT-240L | LJ-240 | 3.6 | 42.0 | 21.5 | 380 | 34.5 |
